POSITIONIT POSITIONERS

2-4 PM-01011-A

October 2023

2.6 Wiring the System

This section discusses wiring the system assuming the default joystick controller (P/N:

5098901) is being used.

2.6.1 Positioner Plugs

The positioner has (2) plug locations on the mounting pedestal for wiring. The side egress

(Figure 2-3) on the mounting pedestal ships from the factory with a removable plug installed.

The bottom egress on the mounting pedestal ships from the factory with a plug plate

installed. To use the bottom egress, the plug plate and the removable plug must be

swapped. If either egress is not properly sealed, the positioner will leak and become

damaged voiding the warranty.

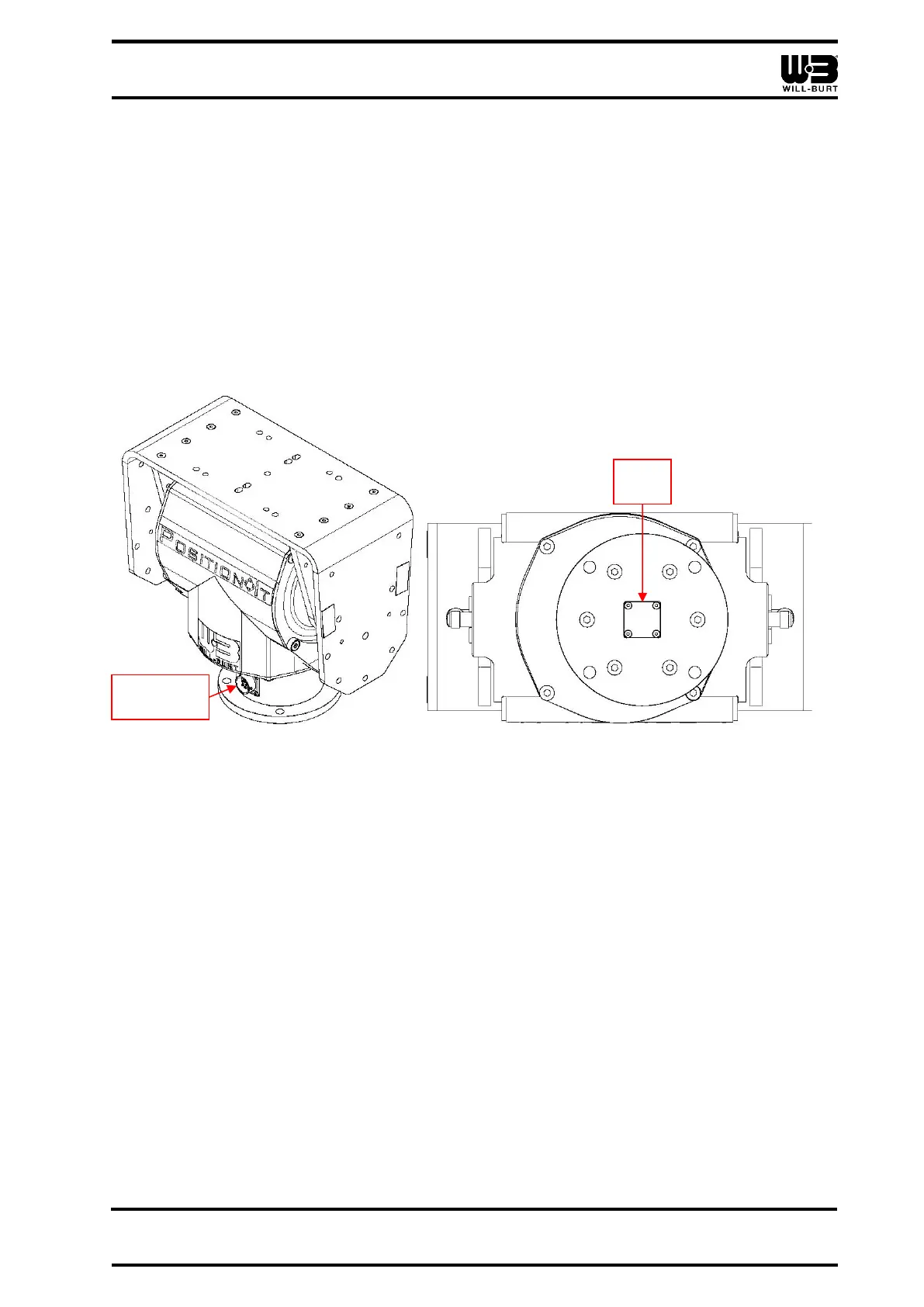

Side Egress with Removable Plug

(View From Side)

Bottom Egress with Plug Plate

(View From Beneath)

Figure 2-3 Positioner Plug Locations (PI-150 Shown)

To use the bottom egress:

1. Ensure there is no power to the positioner.

2. Loosen the (4) bolts securing the removable plug to the side of the mounting

pedestal.

Removable

Plug

Plate
