Will Burt POSITIONIT MM233TX2TXRX2 - Figure 2-6 Remove the (4) Bolts Securing the Plug Plate; Figure 2-7 Remove Plug Plate and Gasket

60 pages

Save Page as PDF

To Next Page

To Previous Page

POSITIONIT POSITIONERS

2-6 PM-01011-A

October 2023

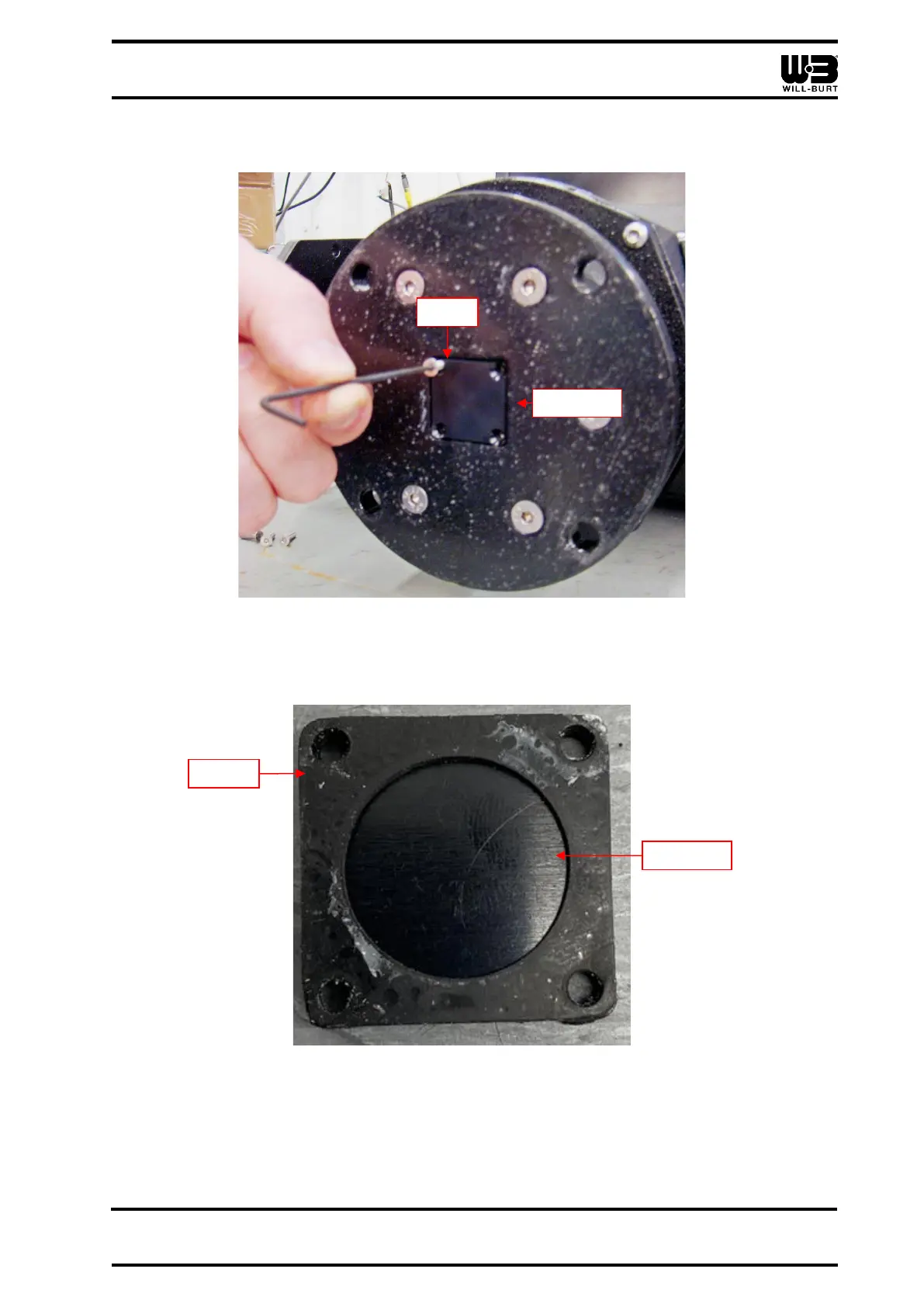

5. Remove the (4) bolts securing the plug plate to the bottom of the mounting pedestal

(Figure 2-6).

Figure 2-6 Remove the (4) Bolts Securing the Plug Plate

6. Remove the plug plate and the gasket behind it (Figure 2-7). Set the gasket and plug

plate aside.

Figure 2-7 Remove Plug Plate and Gasket

Plug Plate

Gasket

Plug Plate

Bolt
