Winkhaus BlueMatic EAV3 - Cable Transition Frame Part for External Power Supply; Cable Transition Frame Part for Frame Power Supply; Cable Transition Frame Part for T-KÜ-T1

Notice: If no separable cable transition (e.g. T-HT KÜ M1188) or
no Winkhaus cable transition is used, then the cable "T-HT
CONNECTION CABLE 6 M FOR MOTOR" for motor housing
(2522881) must be used.
blueMatic EAV 504474431Installation, Operating and
Maintenance Instructions
2
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes

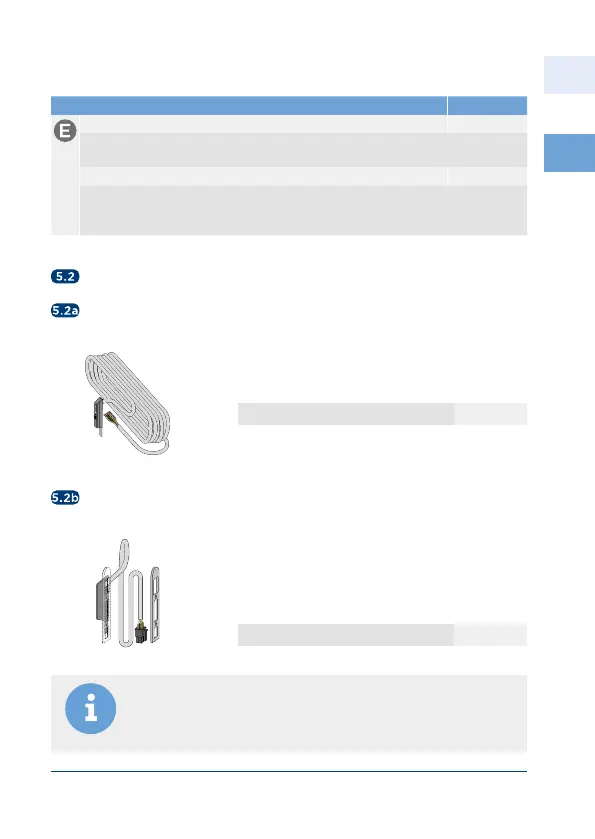

Cable transition frame part for T-KÜ-T1
Cable transition frame part for external power supply
Cable transition frame part for frame power supply
Frame part with 4 m cable and cable end sleeves
(6 wires)
T-KÜ-T RT KABEL M 5040503
Frame part with 0.6 m cable and plug for frame
power supply inclusive cover strip STV-KÜ-T1
RT R8, to cover the profile hole on the frame
side
T-KÜ-T RT KABEL M RNT 5040504
Part Description (see also Figure 3.2) Art.-No.
T-ABDECKBLECH KÜ-T FT F KANT MC 
Cover plate for sash flat faceplate  mm square length  mm
suitable for ALU (PVCu if necessary)
T-ABDECKBLECH KÜ-T RT F X  MC 
Cover plate for frame flat faceplate  mm angulate square length  mm
suitable for ALU (with fitting groove  mm) suitable for example for heroal
D UD
