Winkhaus BlueMatic EAV3 - General Connection Diagram

504474443
3
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes
blueMatic EAV Installation, Operating and
Maintenance Instructions
3.3.1 General connection diagram

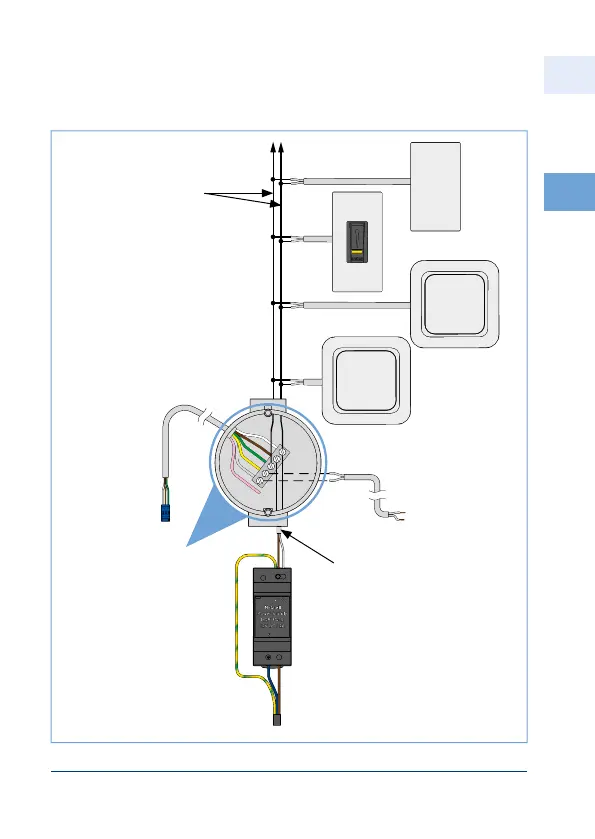

Figure 3.3.1-1: General connection diagram
Recommendation:
flush-type box or
junction box for
cable connection
"Open"
button*
other
button*
Release signal for swing
door opener (optional),
length and cross
section: specification
by the manufacturer of
swing door opener
230 V AC
to/from the
motor housing
Access
control
system*
other
access
control
systems*
**cable of 2 x 0.8 mm,
length of max. 40 m
e.g.
Connector block
(via electrical
contractor)
**cable of 2 x 0.8 mm,
max. 100 m
(up to the last access
control system/up to
the last open button)
N L
- +
* Connection only to a
potential-free contact
(Opening signal
at least 0.5 s)
**
screened cable not
necessary
PE
