Notice: Do follow the relevant installation instructions of the
additional applications!
504474451
3
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes
blueMatic EAV Installation, Operating and
Maintenance Instructions
3.5.2 Wireless receiver (separate)
Separate wireless receiver for additional applications, such as garage door
control units.
Installation sequence
• Remove the cover of the housing.
• Fasten the housing with screws.
• Push in the rubber plug (see figure 3.5.2-1).
• Insert the circuit board of the remote according to figure 3.5.2-2 and connect
it to the control of the additional application (for example to the garage door
control unit).
• Put the cover back on the housing and lock and screw it down.

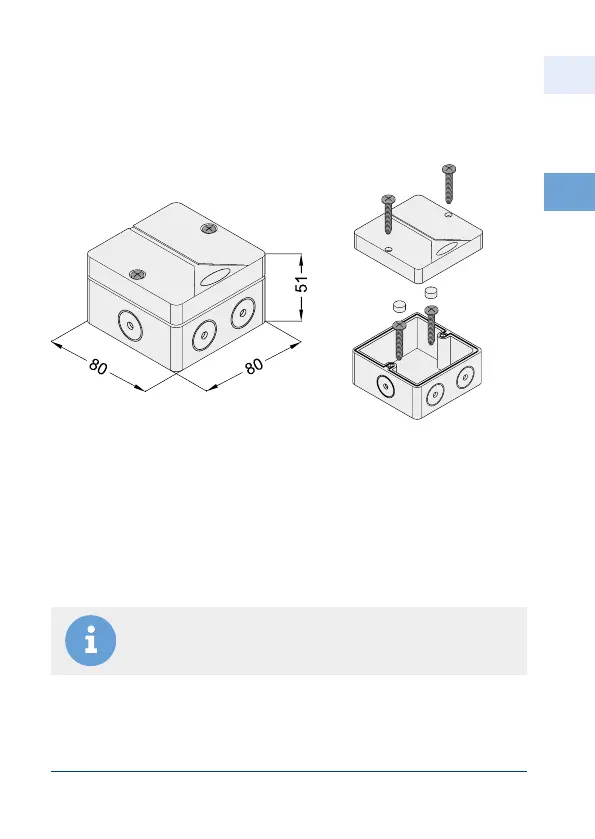

Figure 3.5.2-1: Installing the wireless receiver (dimensions in mm)
