blueMatic EAV Installation, Operating and
Maintenance Instructions
• Relay becomes briefly active after being
activated by remote control and after about
1 sec. it will be deactivated automatically.

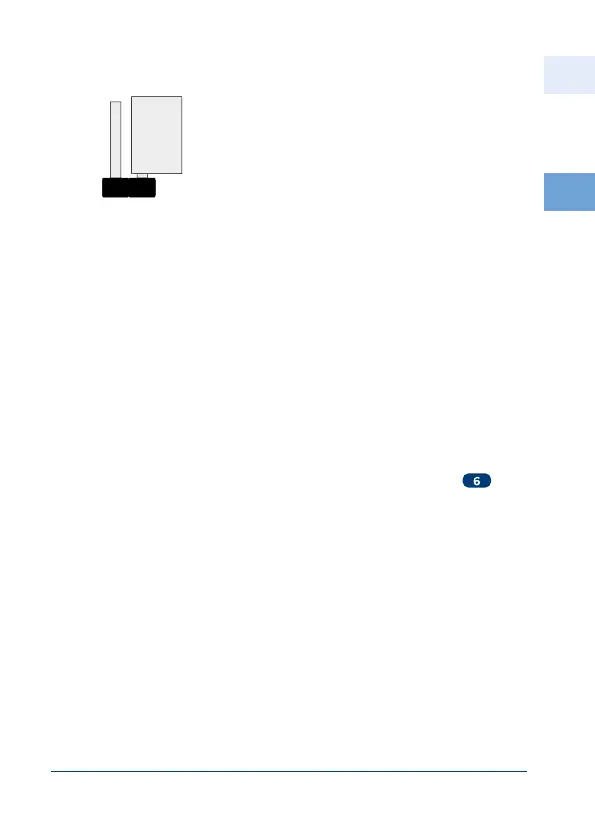

JP1 = OFF
K4 Impuls
Figure 3.5.2-3: Setting the K4 relay
3.6 Non Winkhaus access control system (ACS)
3.6.1 Non Winkhaus access control system ACS general
(frame- and sash side)
3.6.2 Non Winkhaus access control system ACS
fingerprint (sash side)
Prerequisites for installation
• The applied access control system have to be installed into the door sash.
• If parallel to the access control "fingerprint" further access controls
(potential-free signal: e.g. "Open" button, intercom ...) should be used for
unlocking, this is possible via the frame part T-KÜ-T1 RT KABEL 4 M or
frame part T-KÜ-T1 RT KABEL 0,6M RNT + frame power supply T-NETZTEIL
RAHM. 12 V DC 1,5 A (2 A/2 S).
Please observe the following instructions when using other than the precalled
systems to control the blueMatic EAV with motor operated opening (e.g.
transponder set, wireless remote control):
• We recommend the Winkhaus power supply T-HT NETZTEIL 12 V DC/2 A
(Mat.-No. 2469777) or the frame power supply T-NETZTEIL RAHM. 12 V DC
1,5 A (2 A/2 S) (Mat.-No. 5038587) to use.
• For details on the voltage supply see also chapter 2, power supply
.
• Ensure that the decontrol signal takes place over a potential-free contact
when using non-Winkhaus access control systems.
• If required use a coupling relay for realizing this.
