blueMatic EAV Installation, Operating and
Maintenance Instructions

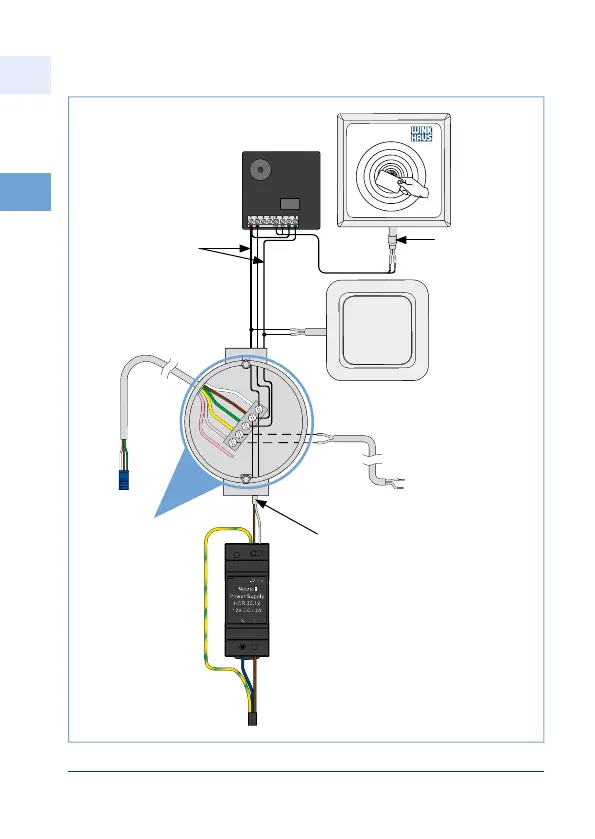

Figure 3.4-2: Installation of the transponder reader
"Open"
button
Release signal for swing door
opener (optional), length and
cross section: specification
by the manufacturer of
swing door opener
to/from the
motor housing
Antenna
**cable of 2 x 0.8 mm, length of max. 40 m
e.g. Connector block
(via electrical
contractor)
**cable of 2 x 0.8 mm,
max. 100 m
(up to the last access
control system/up to
the last open button)
Antenna cable
ready-made, 2.5 m
fixed at the antenna
(not extend cable),
cable ends with
wire end sleeves
Recommendation:
flush-type box or
junction box for
cable connection
230 V AC
N L
- +
PE
** no necessary screened
cable
Transponder reader
