INSTALLATION & SERVICING INSTRUCTIONS FOR GREENSTAR HEATSLAVE II EXTERNAL 12/18-18/25-25/32
6 720 805 210-01
31
INSTALLATION
DANGER - 230V:
ISOLATE THE MAINS ELECTRICITY
SUPPLY BEFORE STARTING ANY
WORK AND OBSERVE ALL RELEVANT
SAFETY PRECAUTIONS.
MOUNTING OPTIONAL PLUG-IN
CONTROLS:

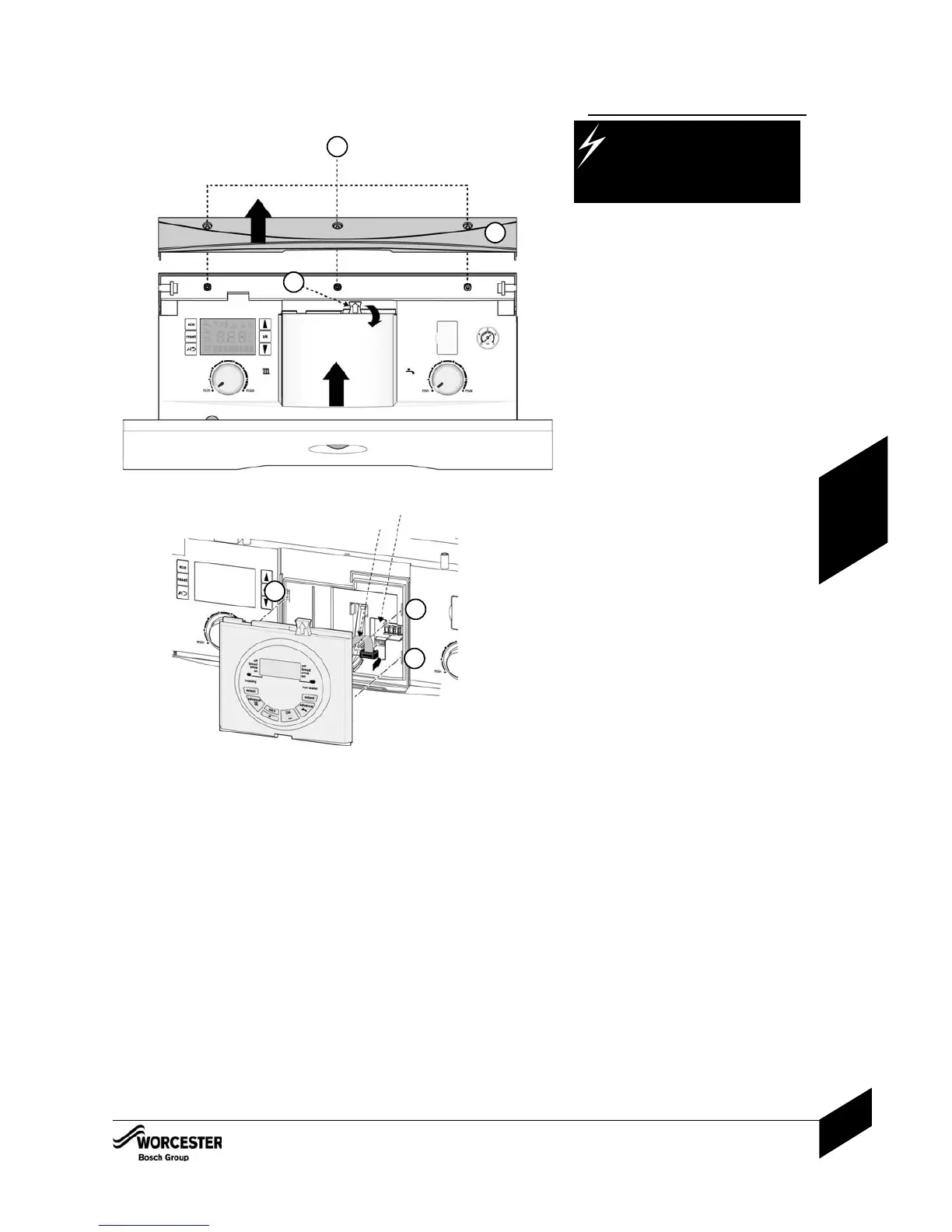

Removing the blanking plate:
The control panel must be pulled fully forward to
gain access to the top cover panel (refer to page.
24 for access to the control panel).
14Release the 3 captive screws (A) and
remove the access cover (B).
4Use the tab (C) to lift and also press down
on the bottom edge of the blanking plate
and at the same time push the blanking
plate upwards to release it from the clips on
the control panel.
4Pull the blanking plate forwards to remove.
Fitting the programmer/timer:
24Connect the ribbon cable to the socket (D)
in the control panel, ensuring the cable will
fit into the recess (E) in the control panel.
4Align the clips on the back of the
programmer/timer with the slots (G) in the
control panel and push in to engage the
clips into the 4 slots.
4Pull the programmer/timer downwards to
secure into place.
4Replace the top access cover (B) securing
in position with the 3 screws (A).
NOTE: Weather Compensation:
For information about Weather
Compensation see page 34.
