RM200QC User Manual
36
If you do not want to use the last measurement taken, press the left side of the Navigation
control to clear (Reset) the measurement.
2. Continue with additional standard measurements if averaging is used. Example above
indicated that 3 measurements are required for the standard.
3. Position the instrument on the sample to use as previously explained and take a
measurement.
If you do not want to use the last measurement taken, press the left side of the Navigation
control to clear (Reset) the measurement.
4. Continue with additional sample measurements if averaging is used.

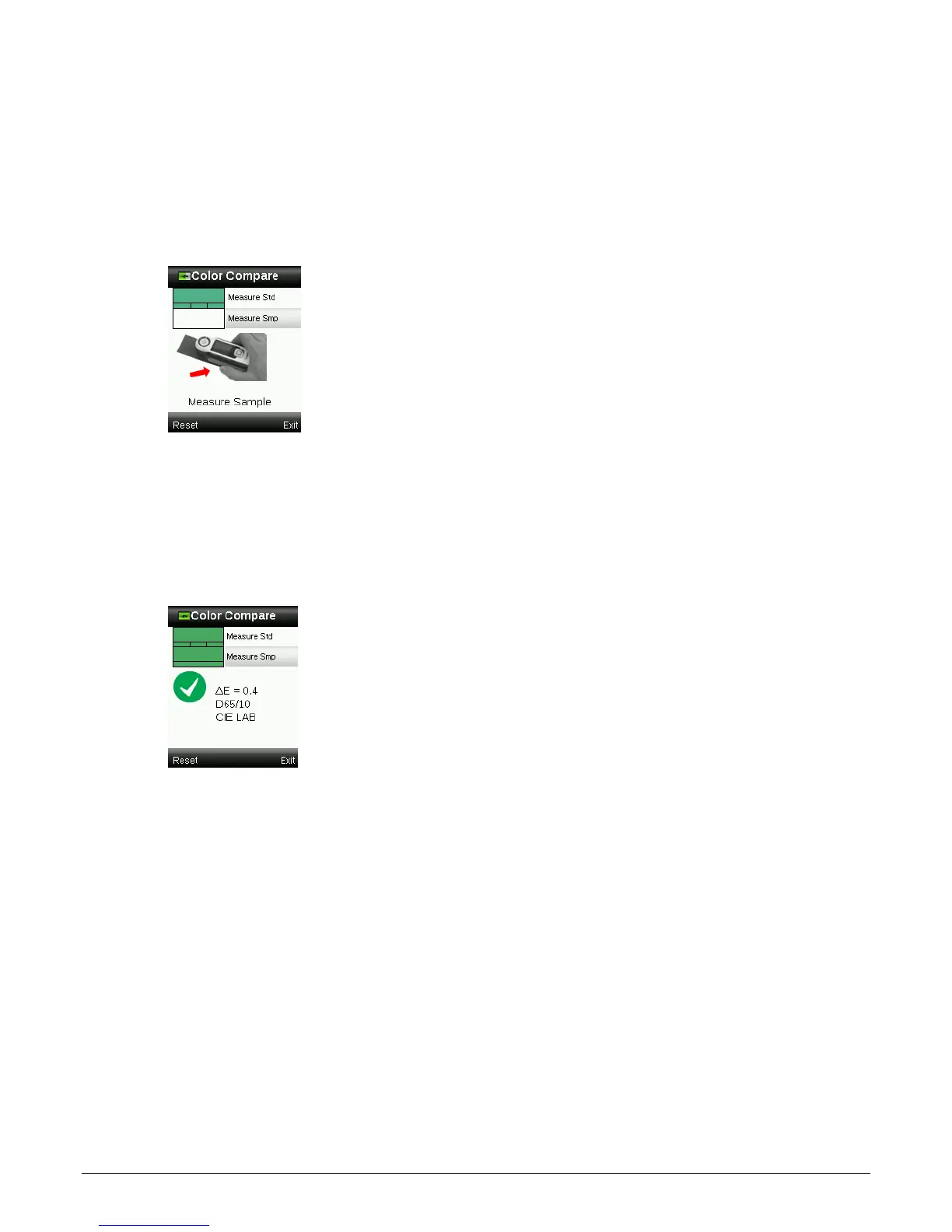

After the measurement(s), a simulated color patch of the sample appears along with the
Pass/Fail indication. The sample below would indicate that the sample passed based on the
tolerance set in the Setting menu.
5. Press the bottom side of the Navigation control to view additional display screens for the
measurement. Display screens that appear are the same screens that are available for Color
QC measurements.
6. Press the right side of the Navigation control to exit and return to the Quick Check window.
Opacity Mode
1. Make sure Over White is selected in the screen and position the instrument on the sample
over the white portion of the opacity card. Take the measurement.
