RM200QC User Manual
33

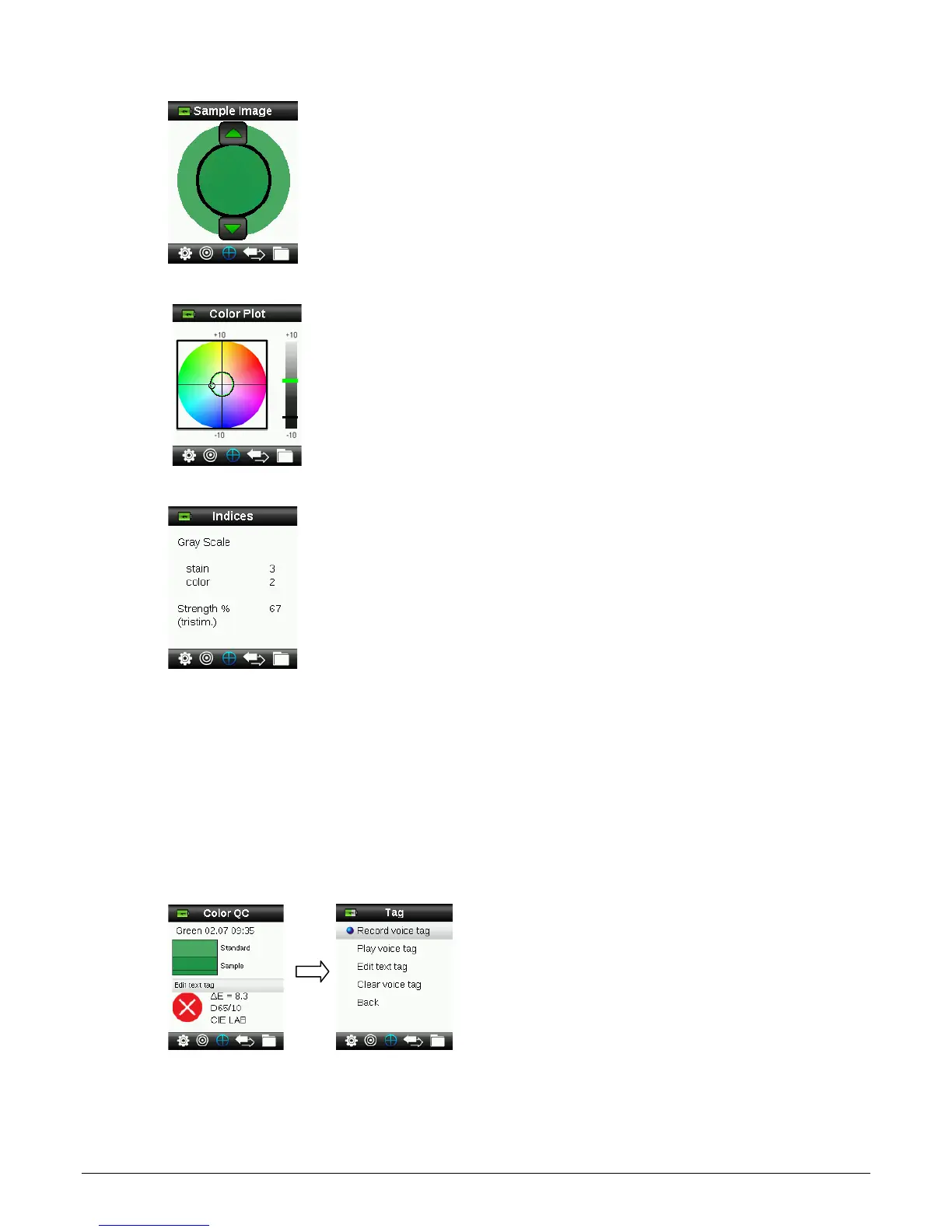

11. Press the down side of the Navigation control to advance to the Color Plot screen.
12. Press the down side of the Navigation control to advance to the Indices screen.
Saving a Tag with a Measurement
Each measurement is automatically saved in the sample record. A voice tag or text tag can be
saved with each sample measurement.
RM200QC can store a maximum of 350 sample measurements which are stored in date & time
order. When the limit of 350 stored records is reached the oldest record is automatically
deleted.
1. From the Color QC window, press the Enter button to display the Tag window.
2. Voice Tag
To record a voice tag for the current sample, select Record voice tag from the list and press
and hold the Enter button down. Speak into the microphone located below the power
button
