Xantrex Freedom XC 2000 User Manual

Basic Installation Procedures
28 Freedom XC Owner's Guide

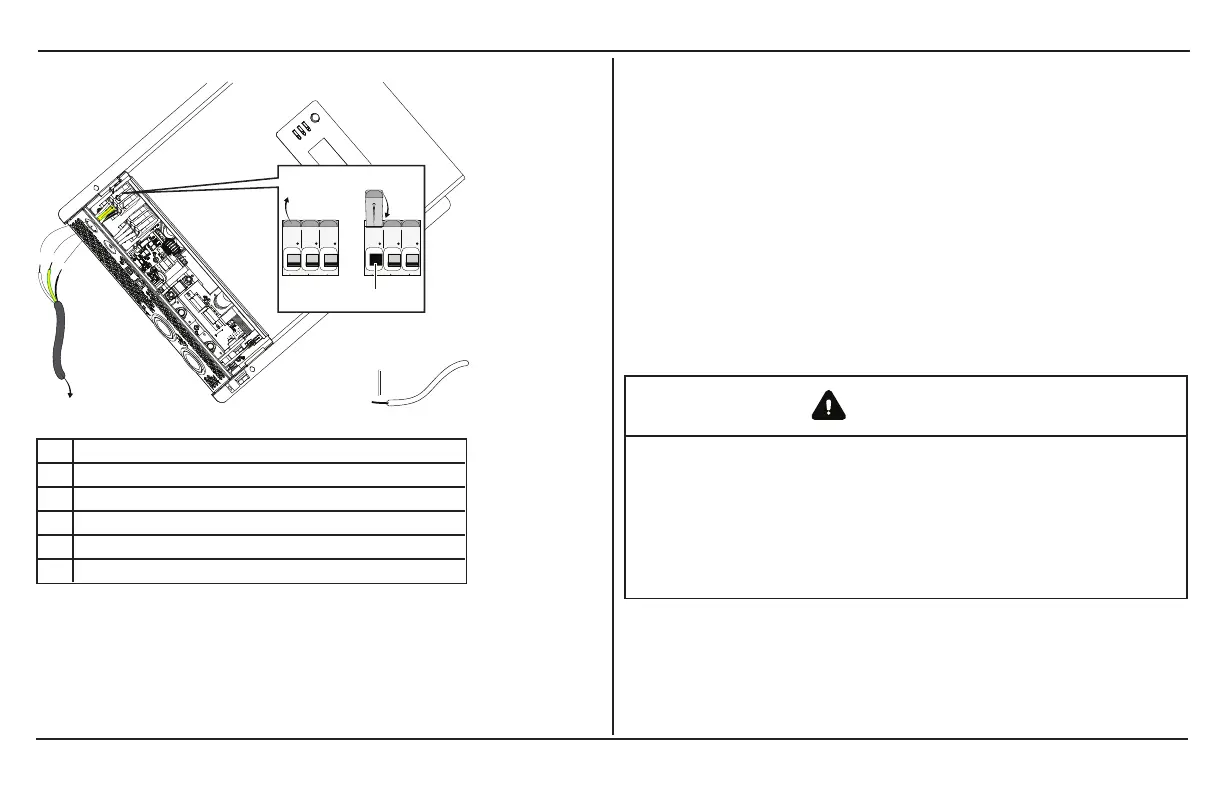

Figure 9 Routing the AC input wires
N
L
G
N LG N LG
2
1
3
4
5
1 step 8a
2 step 8b
3 step 8c
4 15mm
5 to circuit breaker
NOTE: AC input hole - install a strain relief clamp (not shown).
7. Locate the Neutral, Ground and Line terminals on the AC
input terminal labeled as N, G, and L respectively.
8. Connect each AC wire into its corresponding terminal on the
no-tool cage clamp terminal block.
a. Lift the terminal lever (as shown in the previous figure).
b. Insert the wire fully into the open slot.
c. Lower the terminal lever to secure the wire in the slot.
9.
Make sure that each AC wire is matched and connected to
the Neutral (N), Ground(G), and Line (L) connections.
10. Tighten the strain relief clamp to secure the wires.
11. Replace the wiring compartment cover onto the unit (using a
#2 Phillips torque screwdriver - see WARNING), if you are
not connecting other wires such as for the AC Output.
Otherwise, keep the AC compartment open and proceed to
the next step.
WARNING
ELECTRICAL SHOCK HAZARD
Use a torque screwdriver to tighten the captive nut panel screw to
5in-lb (0.56N-m) torque of force to ensure a proper ground
connection and a required tool access to the wiring compartment.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
12. Connect the other end of the wires to the circuit breaker in
the AC distribution panel supplying AC power to the unit.

Xantrex Freedom XC 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Waveform	Pure Sine Wave
Efficiency	90%
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Transfer Time	20ms
