Operating in Grid Mode
975-0784-01-01 61
NOTICE
BATTERY DAMAGE
Do not mix battery types. The Freedom XC can only select one
battery type setting for all batteries connected to its bank. All
connected batteries should either be: Flooded (or wet) or Gel or
AGM or Custom or LFP.
Failure to follow these instructions can result in equipment
damage.
3-Stage Charging Algorithm
The Freedom XC will charge batteries in a sequence known as
three-stage charging.Whenever qualified AC power is present at
the inverter/charger’s input, it passes power through to the
connected load and begins charging the batteries. The charging
voltage delivered to the battery depends on the battery’s:
n Type setting
n Temperature (by switch setting)
n State of charge
The three automatic stages are:
n Bulk
n Absorption
n Float
See 3-Stage Charging Algorithm for a graph of the three-stage
charging profile.
There is a fourth stage, equalization, which is initialized manually
as it is only performed occasionally and only on flooded (or wet)
batteries.
The charging cycle is a multistage (three-stage) process.
Whenever qualified AC power is present at the inverter/charger’s
input, it passes power through to the connected load and begins
charging the batteries.

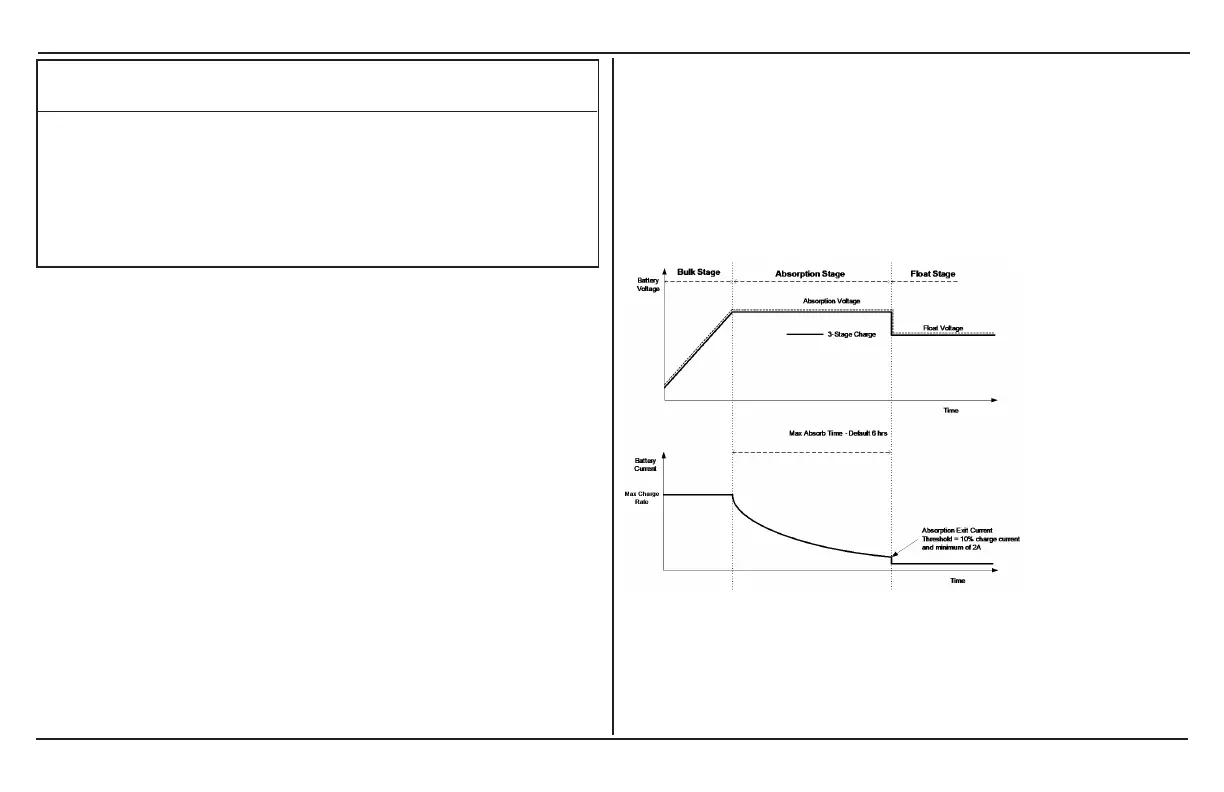

Figure 18 Three-Stage Battery Charging Cycle
NOTE: When the charge cycle is interrupted, the charger will
restart charging at the beginning of the multistage algorithm.
Charge current during equalize state (optional state not shown
here) is normally limited to 10A for 60 min.
