Load Connections
Release 3.0
53
Output S
train
Relief/Cover
See Figure
2.8 and Figure
2.9
for installation of th
e output cover
. Use this cover to
protect users from accidental contact with the bus bars and to clamp output cables in
place.

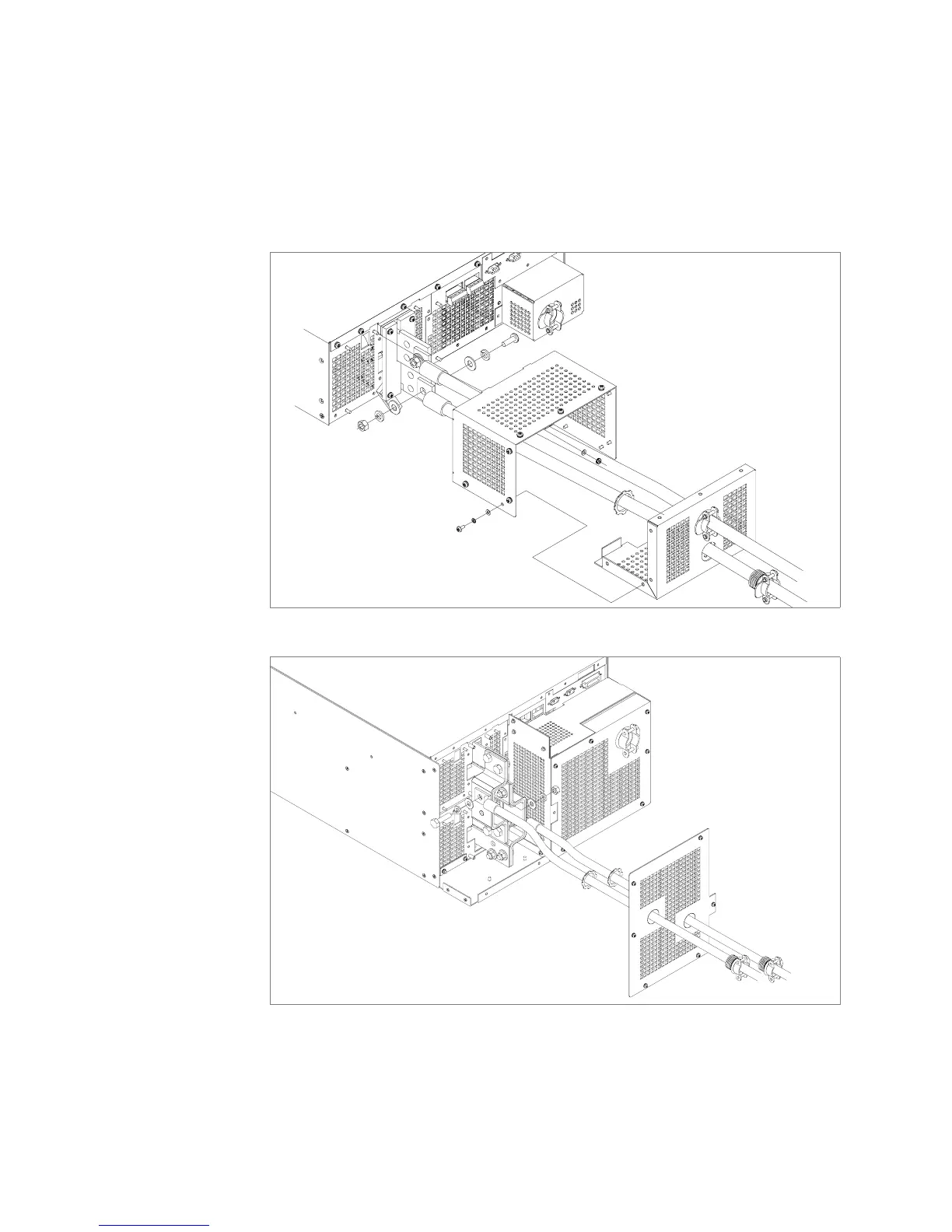

Figure 2.8
Output Bus Bar Cover for 6000
W
att units
(Low and Medium V
oltage)
Figure 2.9
Output for 12000
W
att units (Low an
d Medium V
oltage)
