Specifications and Characteristics
Mechanical Specification
244
Operating Manual for XDC Series Power Supply

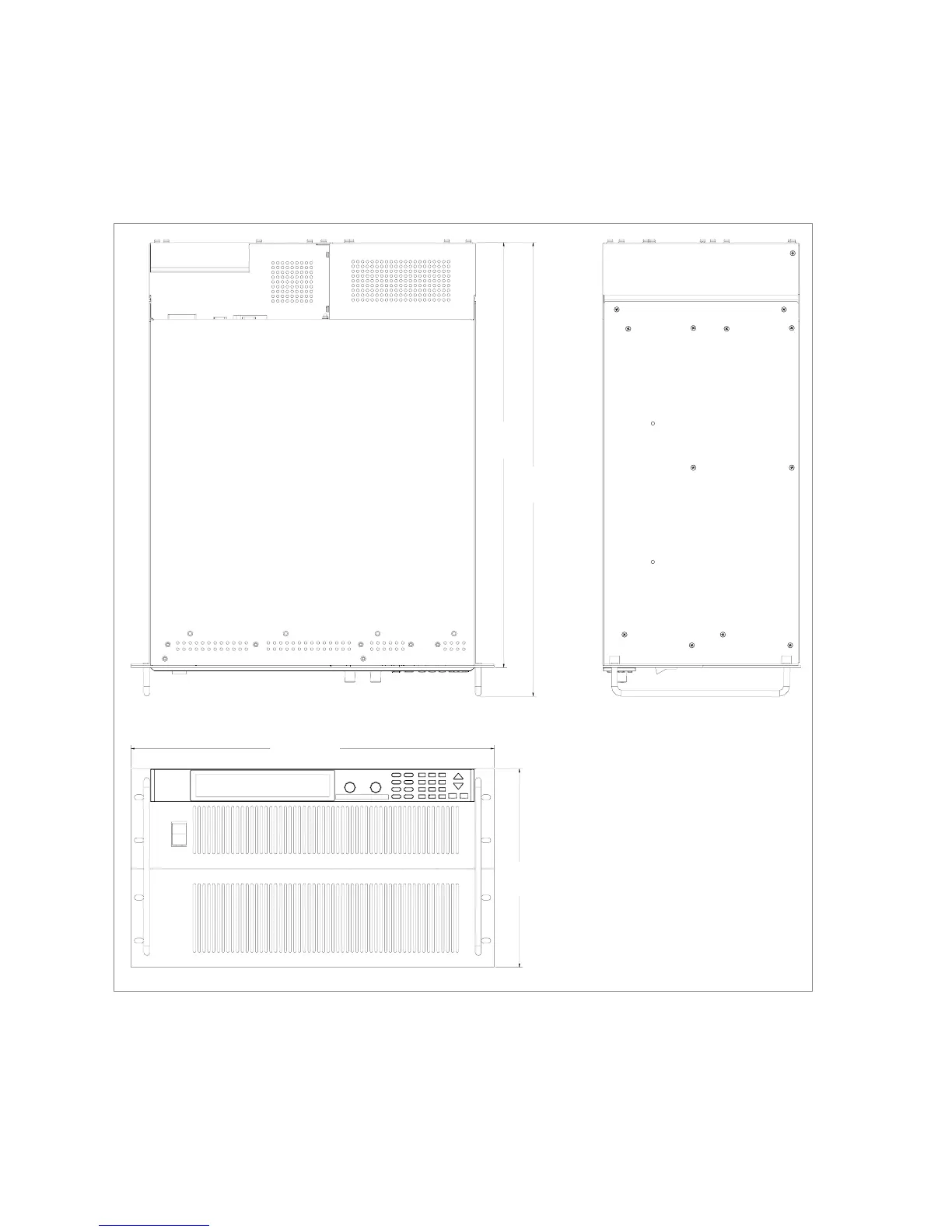

Figure E.2
Power Supply Dimensions (12000
W
att unit)
10.37
in.
22.23
in.
19
in.
483
mm
263
mm
23.73
in.
603
mm
565
mm
