3. Assemble Main Body & Head Assembly Unit

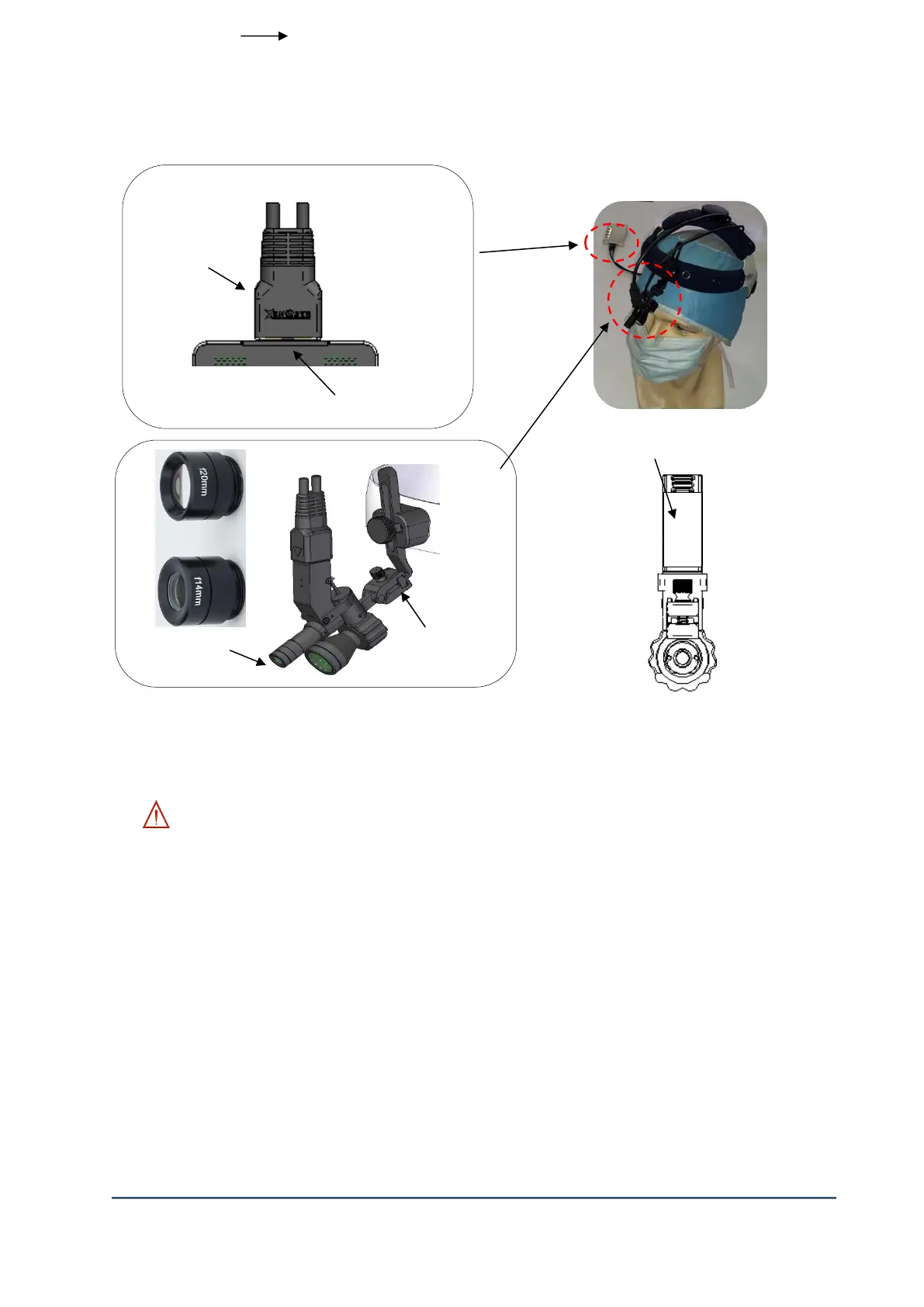

１) Connect the main body plug of head assembly unit cable to ②Camera sensor port of main body.
２) Fix ③Clamp of head assembly unit to the headband.
３) Verify if the product ID code is correct at Viewer set up option “Lens”.
WARNING:
- If the connection is bad on head assembly unit cable, the system booting process will continue.
- If the connection is bad on head assembly unit cable, UMS mode (connecting to USB) may not
work well.
- If the camera sensor plug of head assembly cable is twisted or damaged by hard pull off, video
out cable can be severely damaged which will cause loose contact to image transfer.
Recommended storage of LooksCAM2 will be stored with all head assembly unit cable connected.
