• Before loading labels, remove all other paper from the tray.
CCaauuttiioonn:: Do not use any sheet where labels are missing, curled, or pulled away from the backing sheet.
It could damage the printer.
Loading Labels in Trays 1––4

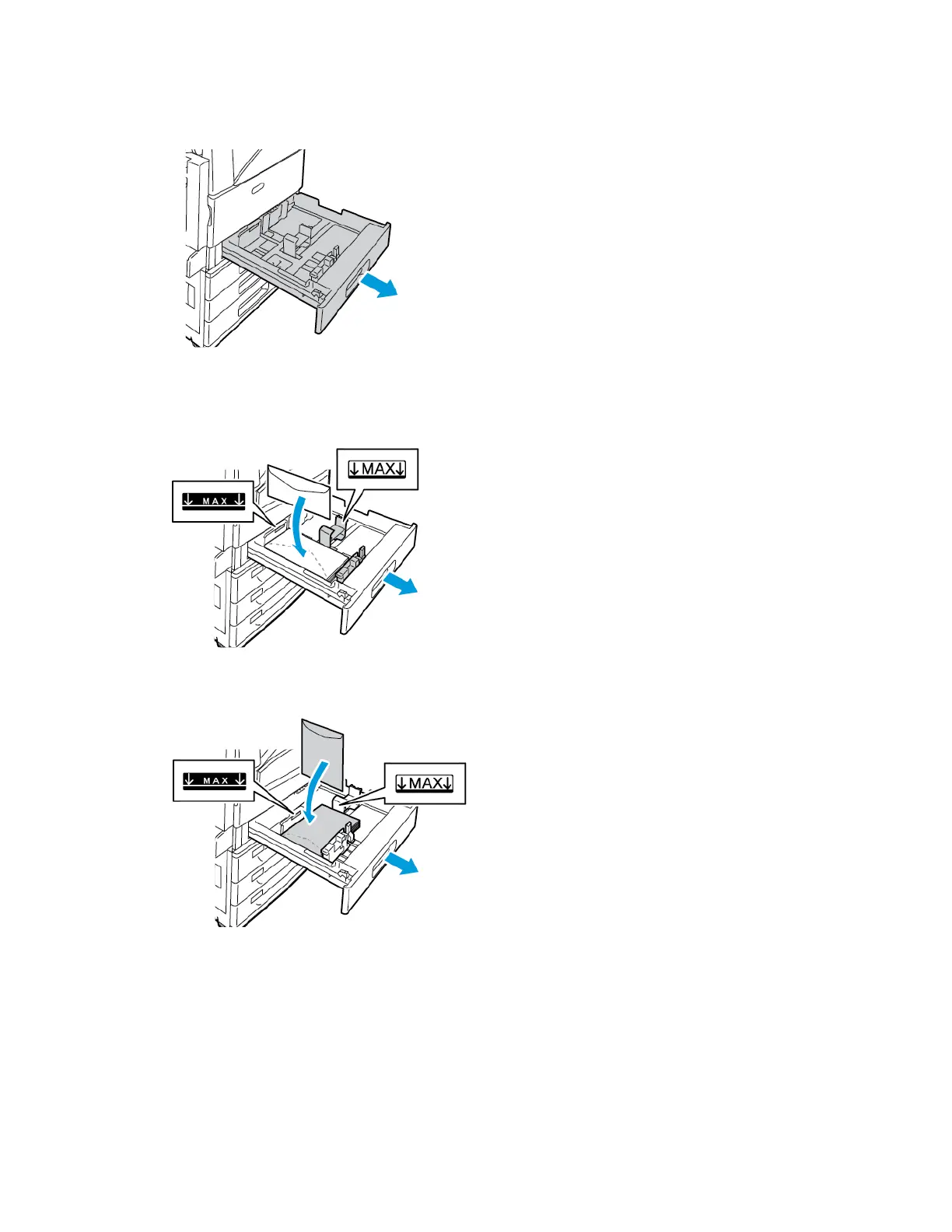

1. Pull out the tray until it stops.
2. Remove any paper that is a different size or type.
3. Ensure that the guide locks are set in the correct position for the size labels that you are loading. For details,
refer to Adjusting the Paper Guides in the 520-Sheet Adjustable Trays.
Note: Trays 1–4 can print labels 106–169g/m².
4. Load labels in the tray.
• For long-edge feed, load labels face up, with the top edge toward the front of the tray.
• For short-edge feed, load labels face up, with the top edge toward the right of the tray.
Xerox
®
EC8036/EC8056 Color Multifunction Printer User Guide 201
Paper and Media
