Xerox
®
N60w Scanner Maintenance
16-10 User Guide

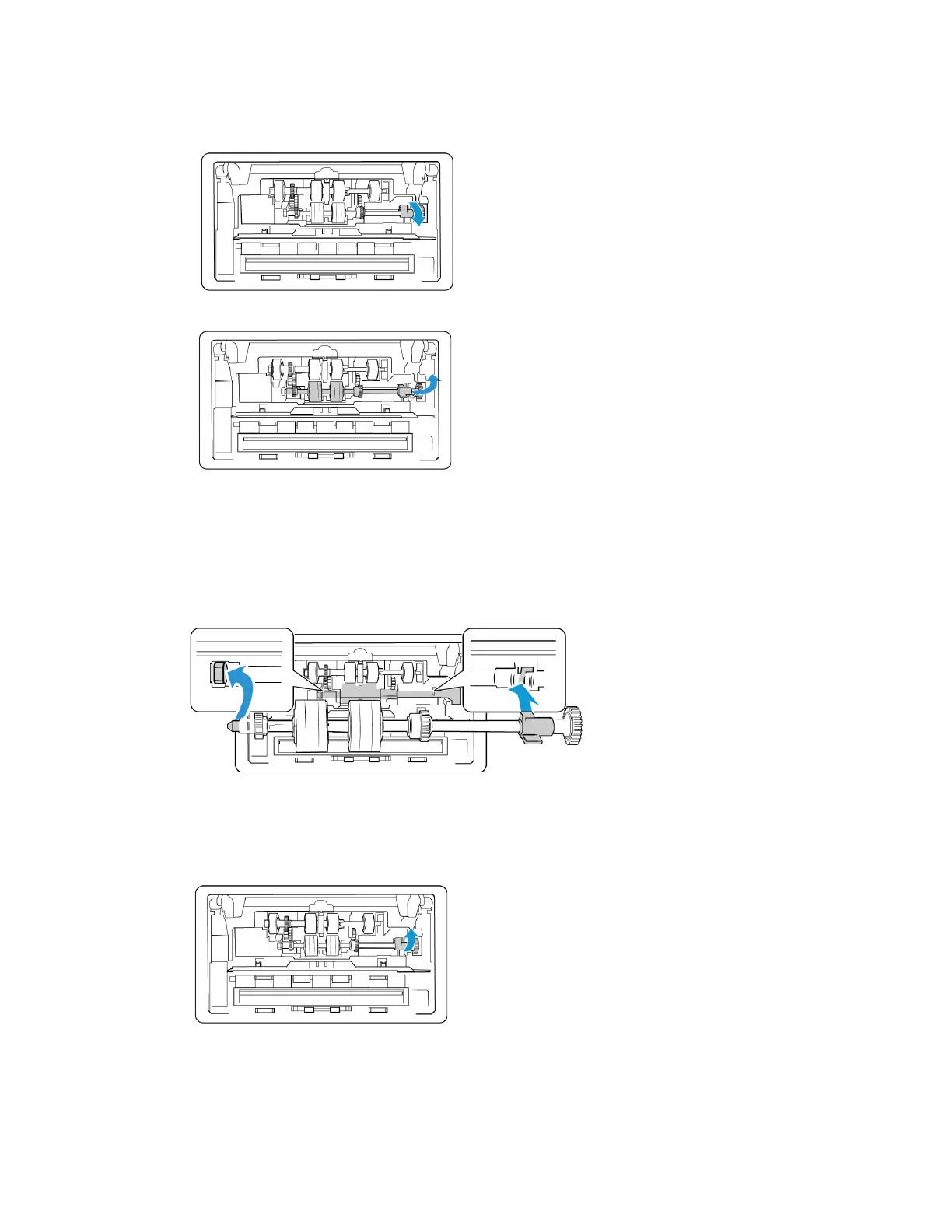

5. The lower roller is held in place with a lock tab that rotates to lock and unlock it. To unlock the
tab, rotate it until the small lock flange is completely free.
6. Carefully angle the roller up and out of the scanner and then discard it, it cannot be repaired.
7. Take the new roller out of its packaging. Clean any dust off the roller before installing it.
8. Insert the left end of the new roller assembly into the hole in the roller channel. Angle the
roller module into the roller channel. Align the tab on the lock flange with the slot in the
scanner.
Make sure that the gears on the roller module properly align to the gears in the scanner. Hold
the roller module in the scanner while you lock it in place.
9. Rotate the locking tab into the slot in the scanner. Push on the lever until it clicks in place and
locks the roller in the scanner.
The lock will “click” into place when it is secure. However, if it does not rotate easily into the
housing, make sure the flange is properly seated in its latch.
