Xerox Phaser 6110 Service Documentation

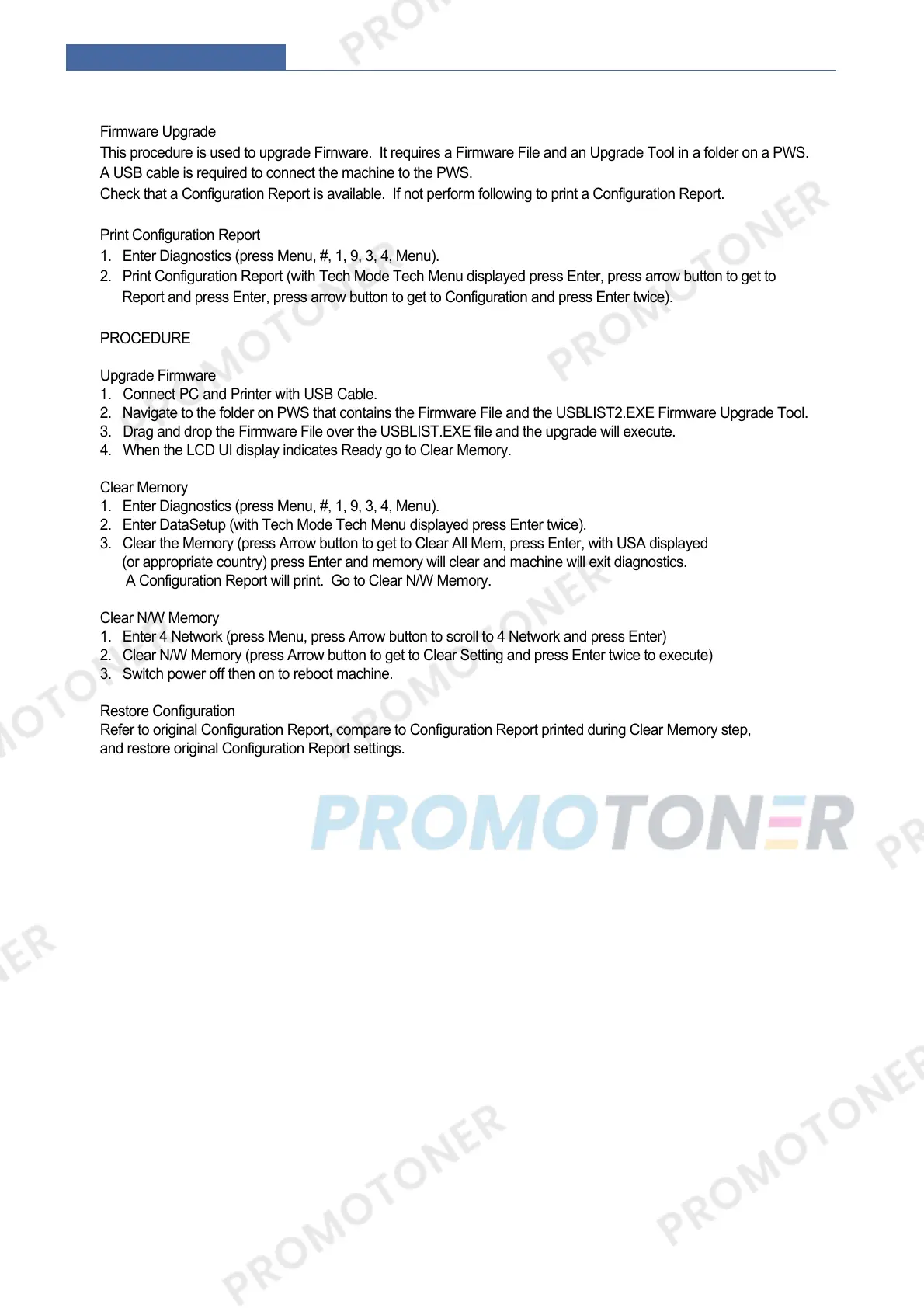

Firmware Upgrade
This procedure is used to upgrade Firnware. It requires a Firmware File and an Upgrade Tool in a folder on a PWS.
A USB cable is required to connect the machine to the PWS.
Check that a Configuration Report is available. If not perform following to print a Configuration Report.
Print Configuration Report
1. Enter Diagnostics (press Menu, #, 1, 9, 3, 4, Menu).
2. Print Configuration Report (with Tech Mode Tech Menu displayed press Enter, press arrow button to get to
Report and press Enter, press arrow button to get to Configuration and press Enter twice).
PROCEDURE
Upgrade Firmware
1. Connect PC and Printer with USB Cable.
2. Navigate to the folder on PWS that contains the Firmware File and the USBLIST2.EXE Firmware Upgrade Tool.
3. Drag and drop the Firmware File over the USBLIST.EXE file and the upgrade will execute.
4. When the LCD UI display indicates Ready go to Clear Memory.
Clear Memory
1. Enter Diagnostics (press Menu, #, 1, 9, 3, 4, Menu).
2. Enter DataSetup (with Tech Mode Tech Menu displayed press Enter twice).
3. Clear the Memory (press Arrow button to get to Clear All Mem, press Enter, with USA displayed
(or appropriate country) press Enter and memory will clear and machine will exit diagnostics.
A Configuration Report will print. Go to Clear N/W Memory.
Clear N/W Memory
1. Enter 4 Network (press Menu, press Arrow button to scroll to 4 Network and press Enter)
2. Clear N/W Memory (press Arrow button to get to Clear Setting and press Enter twice to execute)
3. Switch power off then on to reboot machine.
Restore Configuration
Refer to original Configuration Report, compare to Configuration Report printed during Clear Memory step,
and restore original Configuration Report settings.

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
