Xerox Phaser 6110 Service Documentation

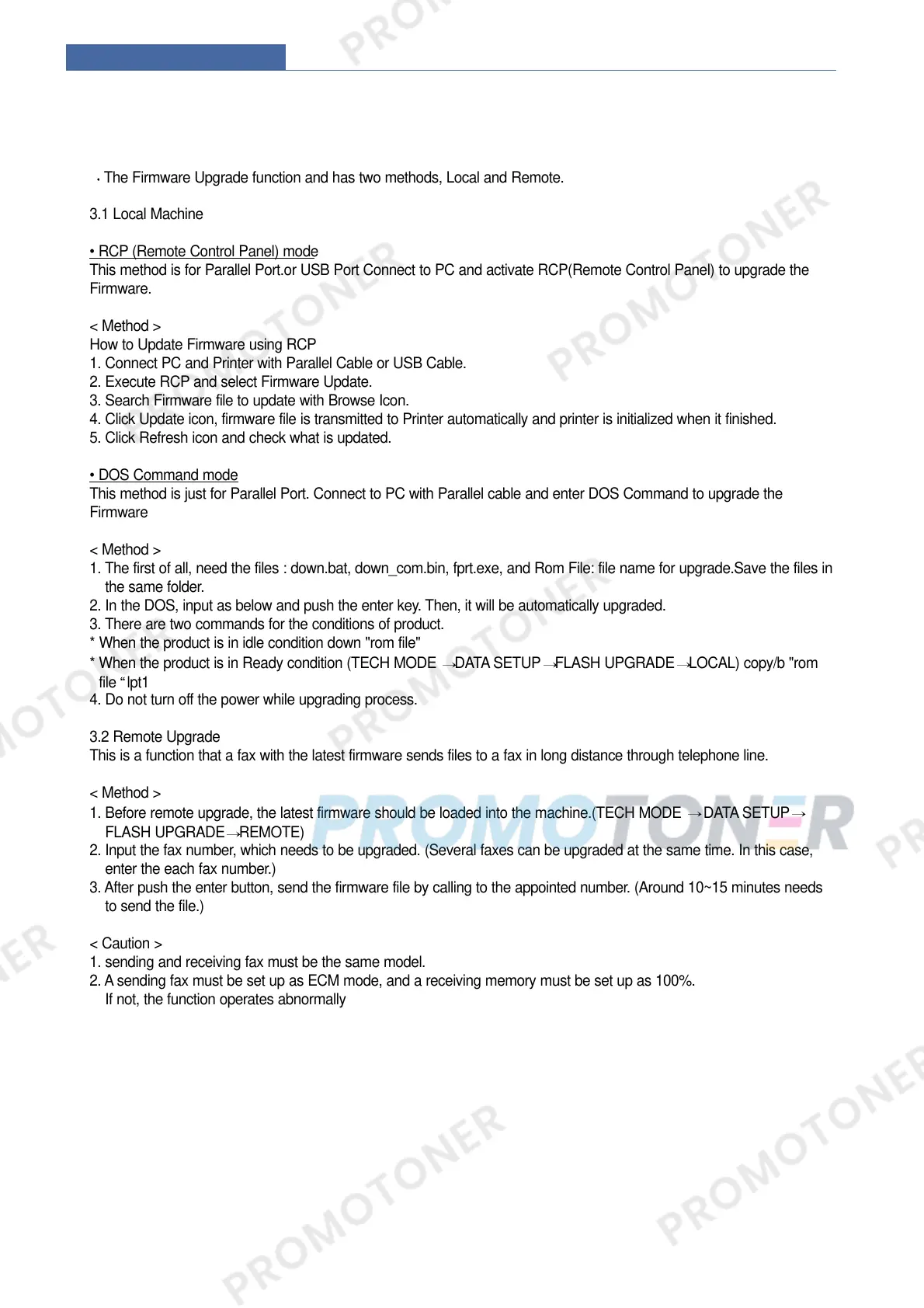

The Firmware Upgrade function and has two methods, Local and Remote.
3.1 Local Machine
• RCP (Remote Control Panel) mode
This method is for Parallel Port.or USB Port Connect to PC and activate RCP(Remote Control Panel) to upgrade the
Firmware.
< Method >
How to Update Firmware using RCP
1. Connect PC and Printer with Parallel Cable or USB Cable.
2. Execute RCP and select Firmware Update.
3. Search Firmware file to update with Browse Icon.
4. Click Update icon, firmware file is transmitted to Printer automatically and printer is initialized when it finished.
5. Click Refresh icon and check what is updated.
• DOS Command mode
This method is just for Parallel Port. Connect to PC with Parallel cable and enter DOS Command to upgrade the
Firmware
< Method >
1. The first of all, need the files : down.bat, down_com.bin, fprt.exe, and Rom File: file name for upgrade.Save the files in
the same folder.
2. In the DOS, input as below and push the enter key. Then, it will be automatically upgraded.
3. There are two commands for the conditions of product.
* When the product is in idle condition down "rom file"
* When the product is in Ready condition (TECH MODE DATA SETUP FLASH UPGRADE LOCAL) copy/b "rom
file lpt1
4. Do not turn off the power while upgrading process.
3.2 Remote Upgrade
This is a function that a fax with the latest firmware sends files to a fax in long distance through telephone line.
< Method >
1. Before remote upgrade, the latest firmware should be loaded into the machine.(TECH MODE DATA SETUP
FLASH UPGRADE REMOTE)
2. Input the fax number, which needs to be upgraded. (Several faxes can be upgraded at the same time. In this case,
enter the each fax number.)
3. After push the enter button, send the firmware file by calling to the appointed number. (Around 10~15 minutes needs
to send the file.)
< Caution >
1. sending and receiving fax must be the same model.
2. A sending fax must be set up as ECM mode, and a receiving memory must be set up as 100%.
If not, the function operates abnormally

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
