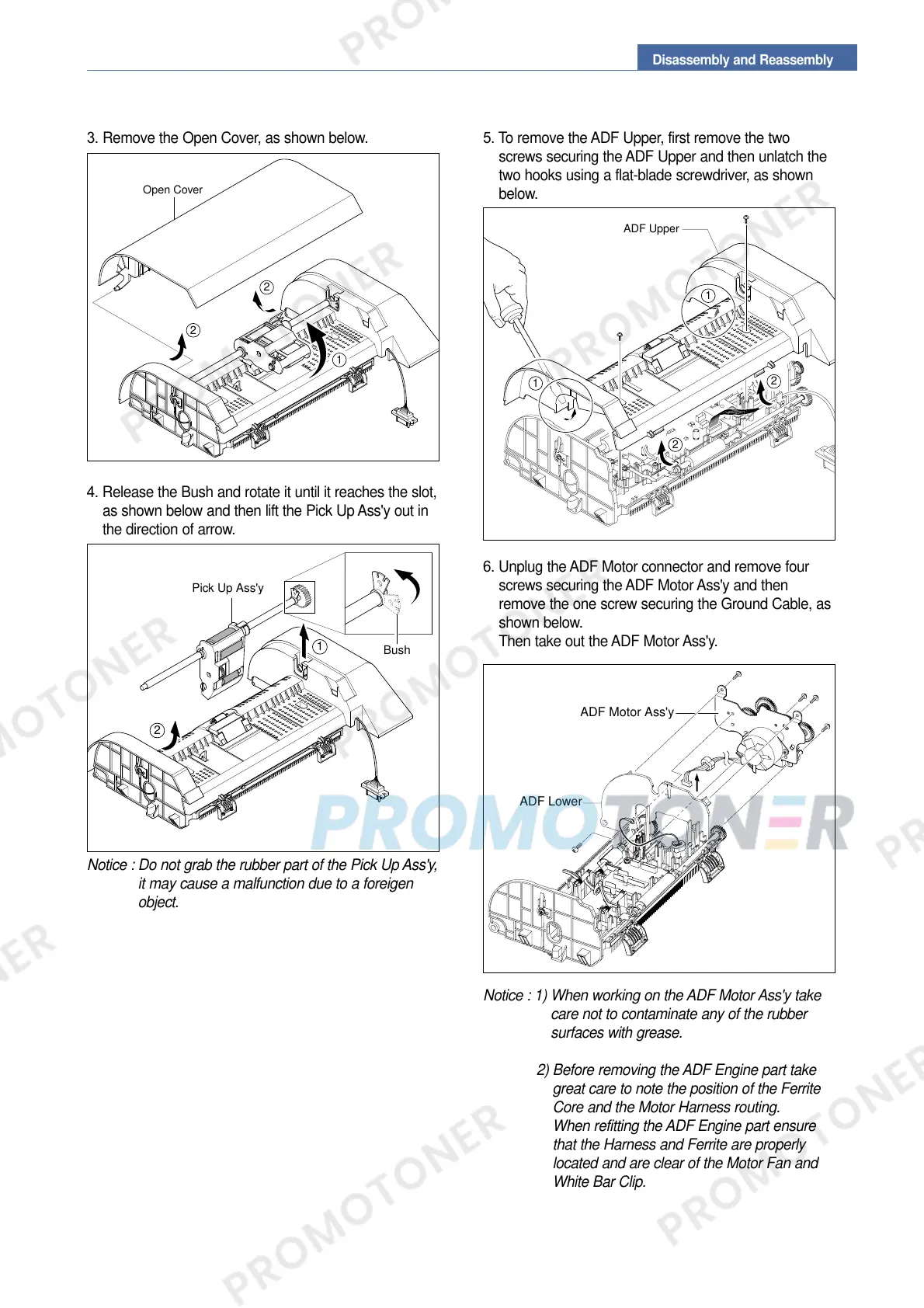

Disassembly and Reassembly
3. Remove the Open Cover, as shown below.
4. Release the Bush and rotate it until it reaches the slot,
as shown below and then lift the Pick Up Ass'y out in
the direction of arrow.
Notice : Do not grab the rubber part of the Pick Up Ass'y,
it may cause a malfunction due to a foreigen
object.
Open Cover
1
2
2
Pick Up Ass'y
Bush
2
1
5. To remove the ADF Upper, first remove the two
screws securing the ADF Upper and then unlatch the
two hooks using a flat-blade screwdriver, as shown
below.
6. Unplug the ADF Motor connector and remove four
screws securing the ADF Motor Ass'y and then
remove the one screw securing the Ground Cable, as
shown below.
Then take out the ADF Motor Ass'y.
Notice : 1) When working on the ADF Motor Ass'y take
care not to contaminate any of the rubber
surfaces with grease.
ADF Upper
2
1
1
2
ADF Motor Ass'y
ADF Lower
2) Before removing the ADF Engine part take
great care to note the position of the Ferrite
Core and the Motor Harness routing.
When refitting the ADF Engine part ensure
that the Harness and Ferrite are properly
located and are clear of the Motor Fan and
White Bar Clip.
