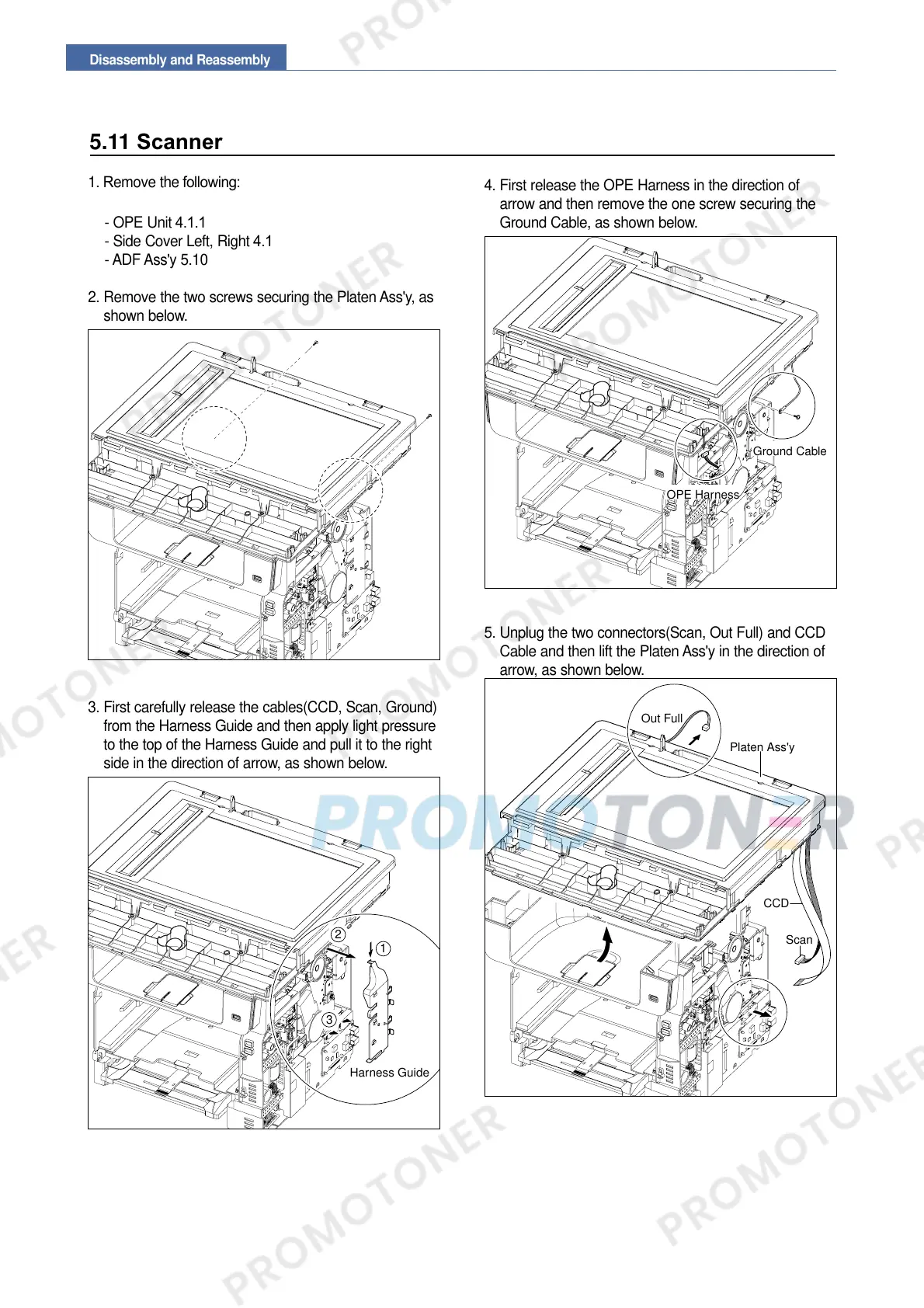

Disassembly and Reassembly
1. Remove the following:
- OPE Unit 4.1.1
- Side Cover Left, Right 4.1
- ADF Ass'y 5.10
2. Remove the two screws securing the Platen Ass'y, as
shown below.
3. First carefully release the cables(CCD, Scan, Ground)
from the Harness Guide and then apply light pressure
to the top of the Harness Guide and pull it to the right
side in the direction of arrow, as shown below.
4. First release the OPE Harness in the direction of
arrow and then remove the one screw securing the
Ground Cable, as shown below.
5. Unplug the two connectors(Scan, Out Full) and CCD
Cable and then lift the Platen Ass'y in the direction of
arrow, as shown below.
5.11 Scanner
2
3
1
Harness Guide
OPE Harness
Ground Cable
Platen Ass'y
CCD
Scan
Out Full
