Disassembly and Reassembly

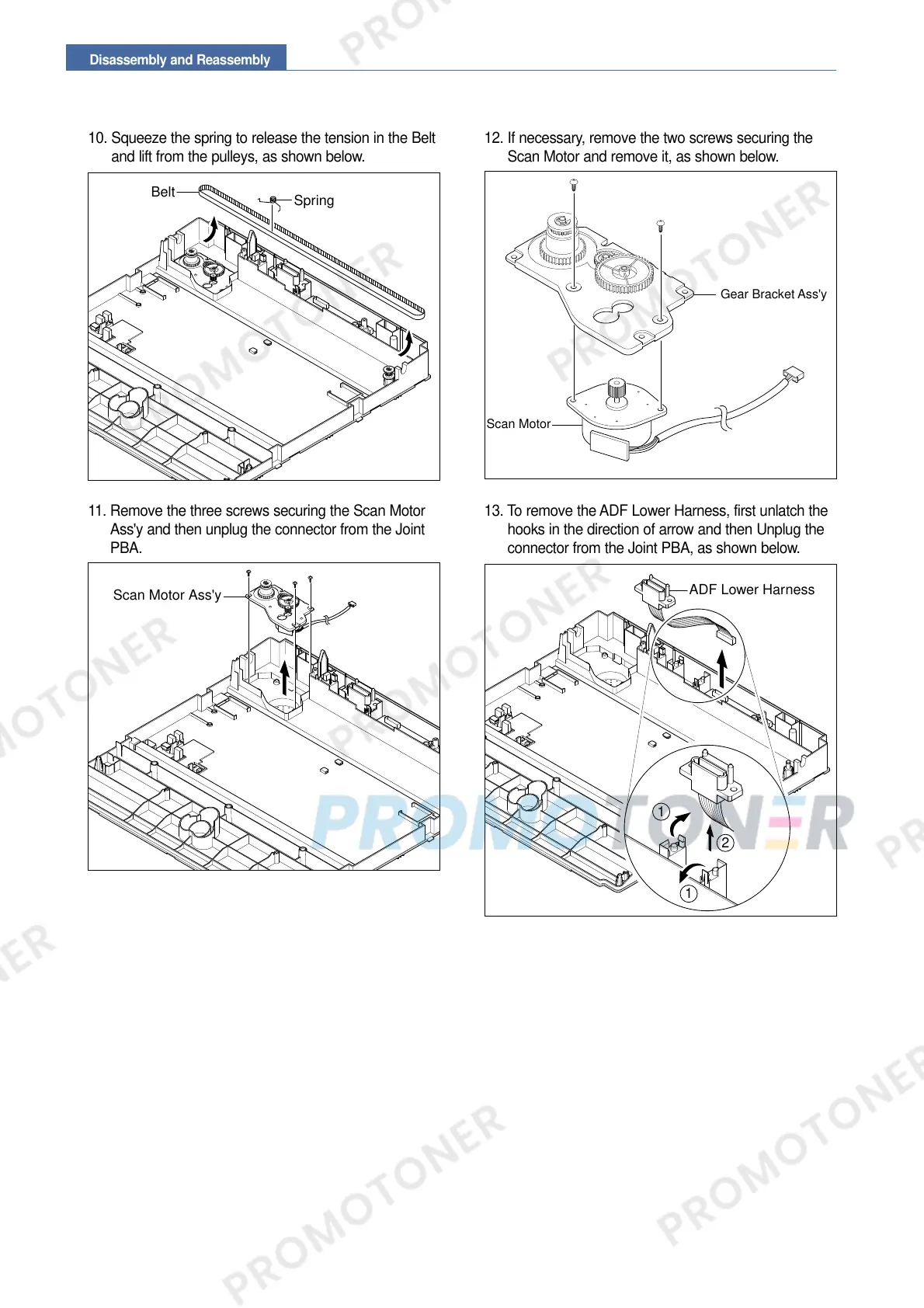

10. Squeeze the spring to release the tension in the Belt
and lift from the pulleys, as shown below.
11. Remove the three screws securing the Scan Motor
Ass'y and then unplug the connector from the Joint
PBA.
12. If necessary, remove the two screws securing the
Scan Motor and remove it, as shown below.
13. To remove the ADF Lower Harness, first unlatch the
hooks in the direction of arrow and then Unplug the
connector from the Joint PBA, as shown below.
