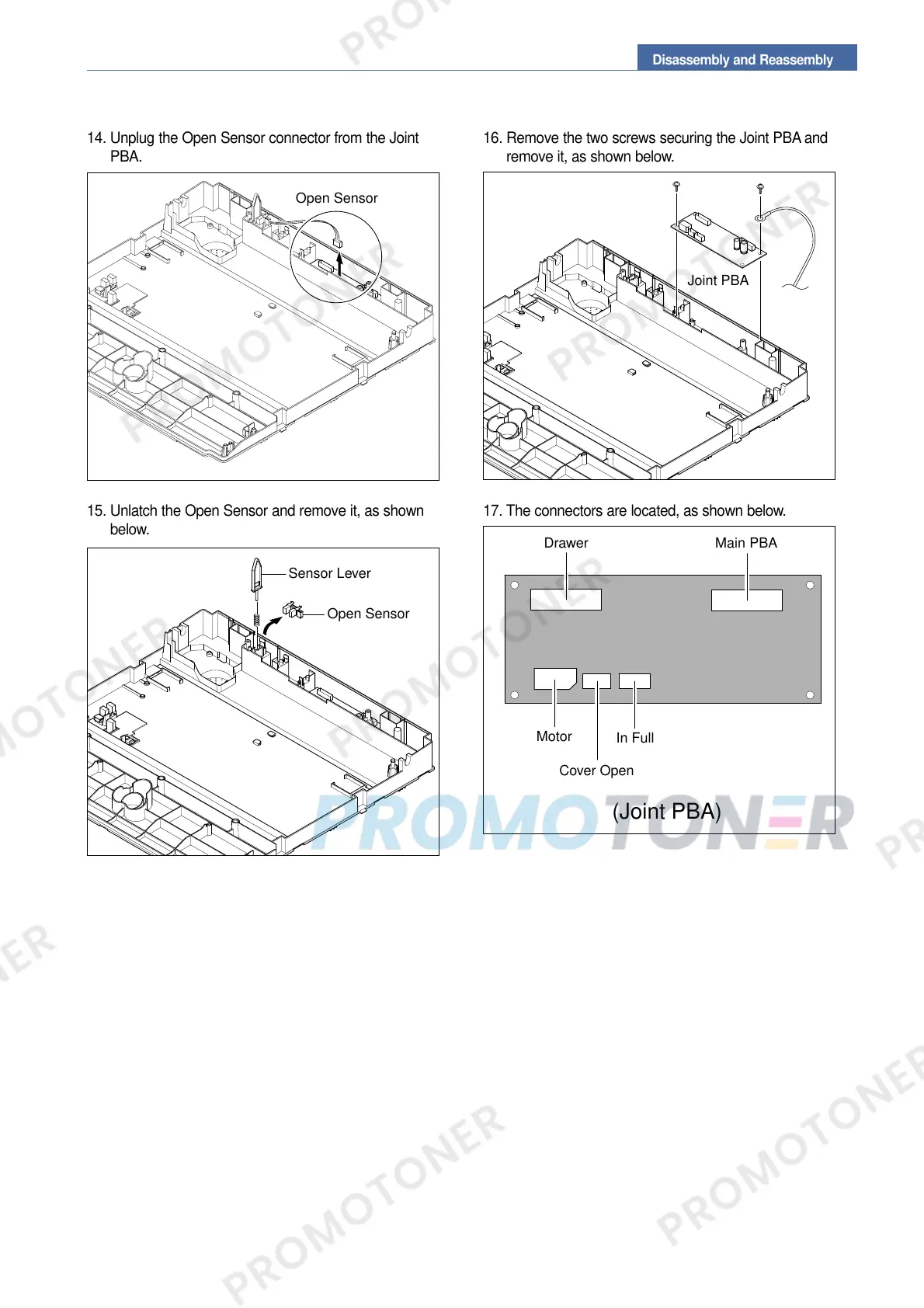

Disassembly and Reassembly
14. Unplug the Open Sensor connector from the Joint
PBA.
15. Unlatch the Open Sensor and remove it, as shown
below.
16. Remove the two screws securing the Joint PBA and
remove it, as shown below.
17. The connectors are located, as shown below.
To Next Page
