Xerox VersaLink B625

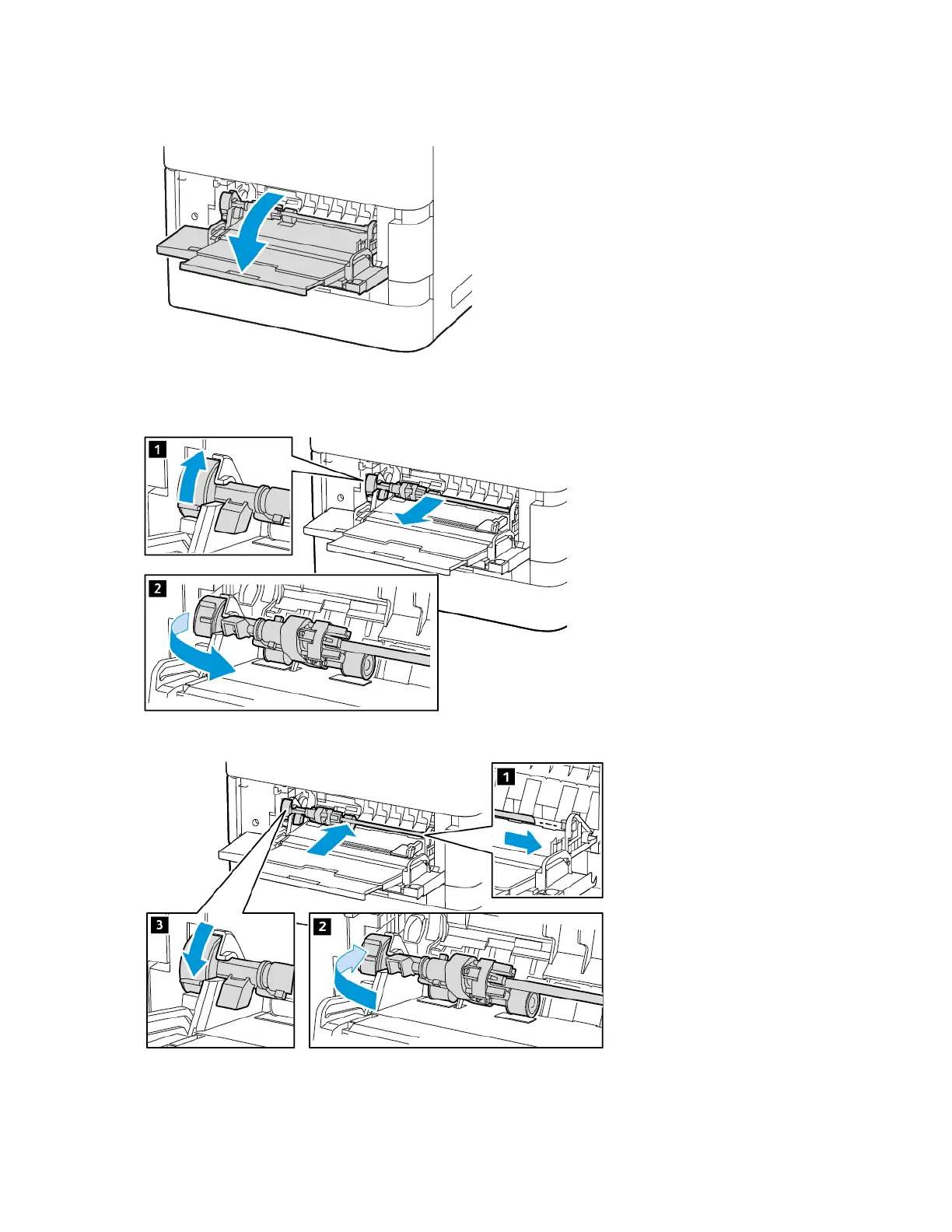

2. Open the bypass tray.
3. To release the feed roller, rotate the left end of the feed roller clockwise, as shown, then remove it from the
bypass tray.
4. Unpack and insert the new feed roller in the bypass tray.
Xerox
®
VersaLink
®
B625 Multifunction Printer User Guide 233
Maintenance
