Viewing Status on the Wireless Array 101
 CDP Neighbors — lists neighboring network devices using Cisco
Discovery Protocol.
 Network Assurance — shows results of connectivity tests for network
servers.
 Undefined VLANs — shows VLANs present on an 802.1Q connection to
the Array, that are not configured in the Array's VLAN list.
Network
This window provides a snapshot of the configuration settings currently
established for Array’s wired interfaces. This includes the Gigabit interfaces and
their bonding settings. DNS Settings are summarized as well. You can click on
any item in the Interface or Bond columns to go to the associated configuration
window.

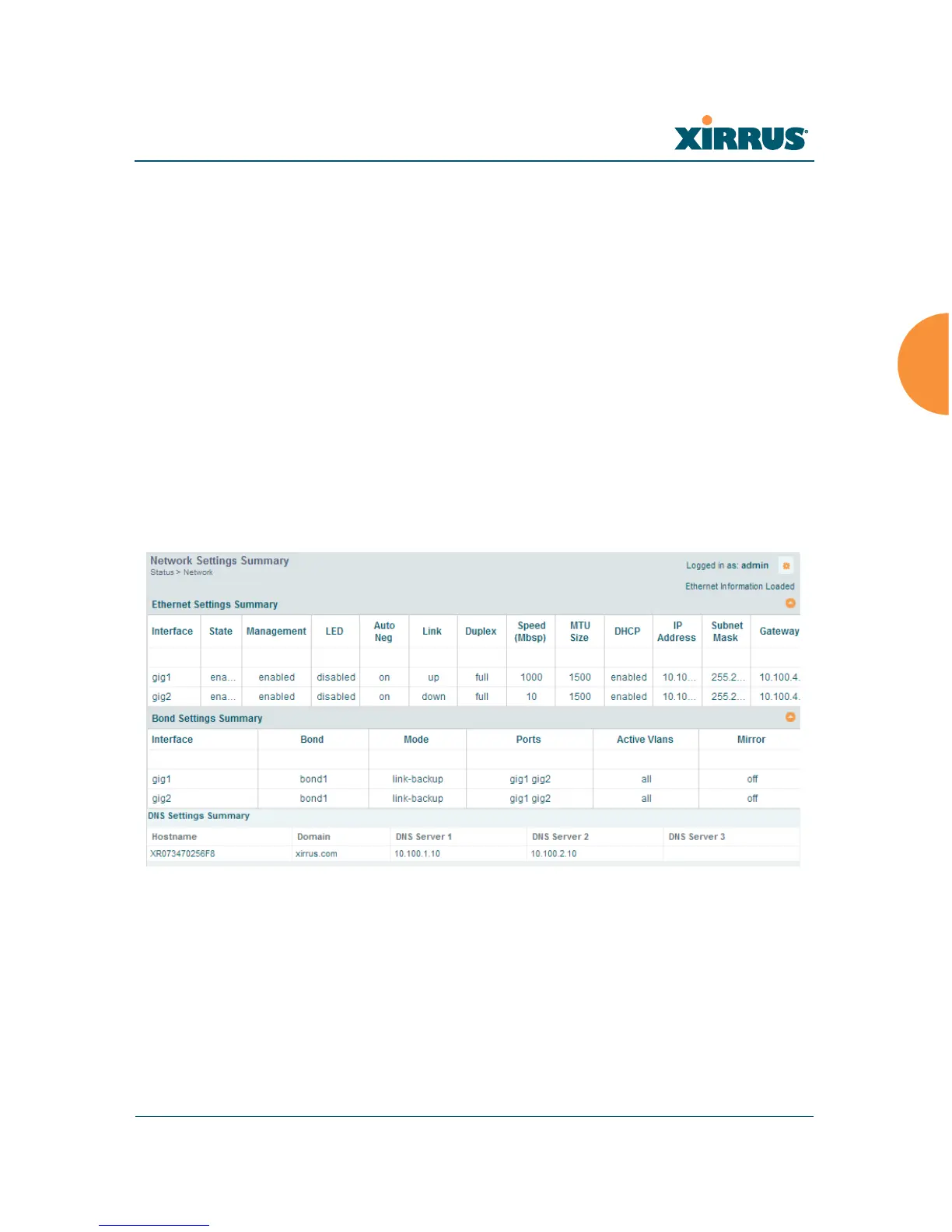

Figure 50. Network Settings
WMI windows that allow you to change or view configuration settings associated
with the network interfaces include:
 “Network Interfaces” on page 166
 “Bonds and Bridging” on page 169
 “DNS Settings” on page 176
