66 Installing the Wireless Array
Mounting and Connecting the Array/AP
A detailed Quick Installation Guide is available at support.xirrus.com that
describes mounting your Array/AP. Please follow the provided instructions
carefully. Data and power connections to the Array are also detailed in the Quick
Installation Guide. Please follow the cabling and connection instructions carefully.
Dismounting the Array
For all Array/AP models, push up on the Array/AP (i.e., push it against the
mounting plate). Then turn the Array to the left to remove it. This is similar to
dismounting a smoke detector.
Powering Up the Wireless Array
When powering up, the Array follows a specific sequence of LED patterns
showing the boot progress, and following a successful boot will provide extensive
status information.

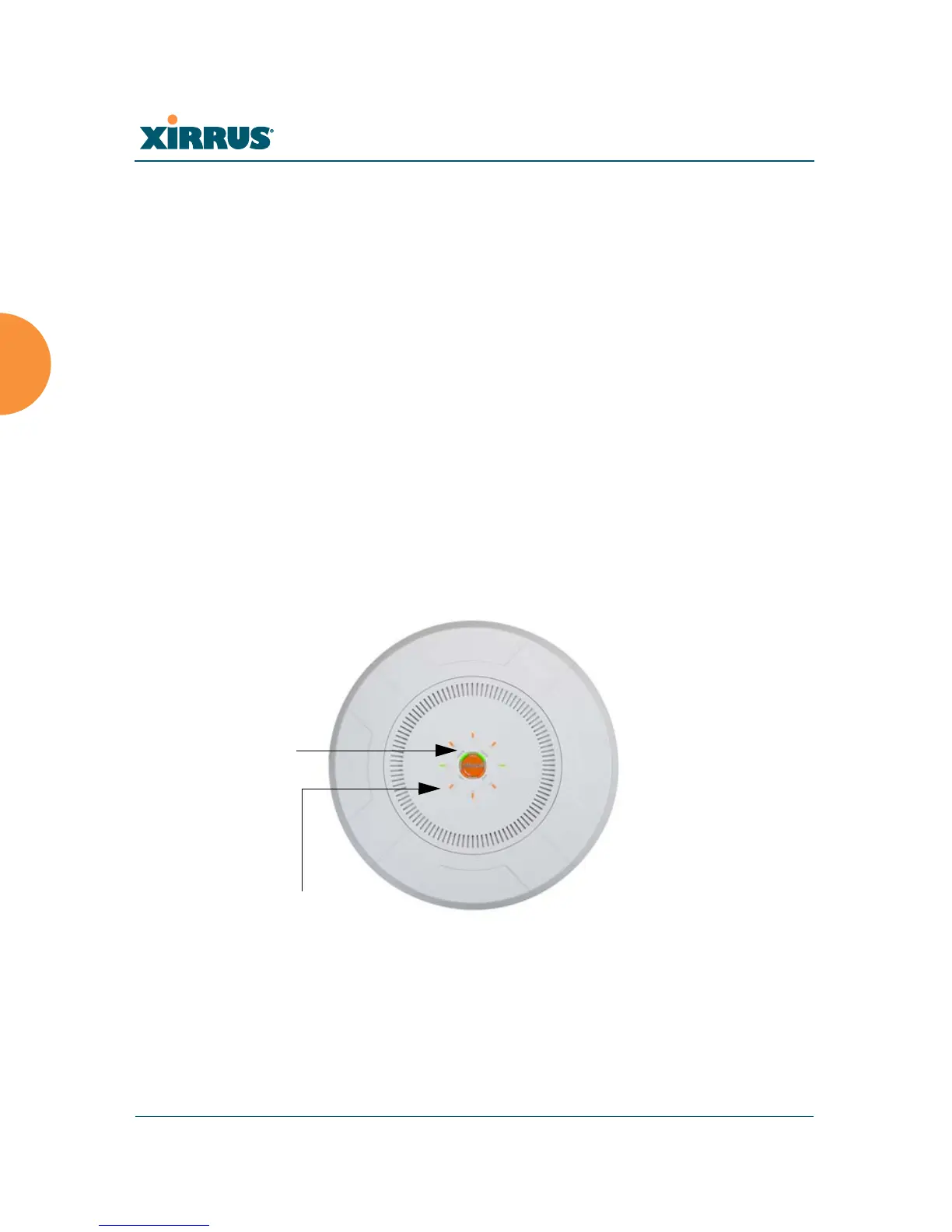

Figure 31. LED Locations
Array LED settings may be altered or disabled entirely for diagnostic purposes or
for personal preference. Changes are made via the Array’s Command Line
Interface or the Web Management Interface — refer to “LED Settings” on page 354.
