Wireless Array
112 Viewing Status on the Wireless Array
IAPs
The RF Monitor — IAPs window displays traffic statistics and RF readings
observed by each Array IAP (radio). Note that the data is an instantaneous
snapshot for the IAP — it is not an average or a cumulative total. To graph these
values over time for a particular channel, see “Channel History” on page 118. For
detailed information on the measurements displayed, please see “Spectrum
Analyzer Measurements” on page 115.

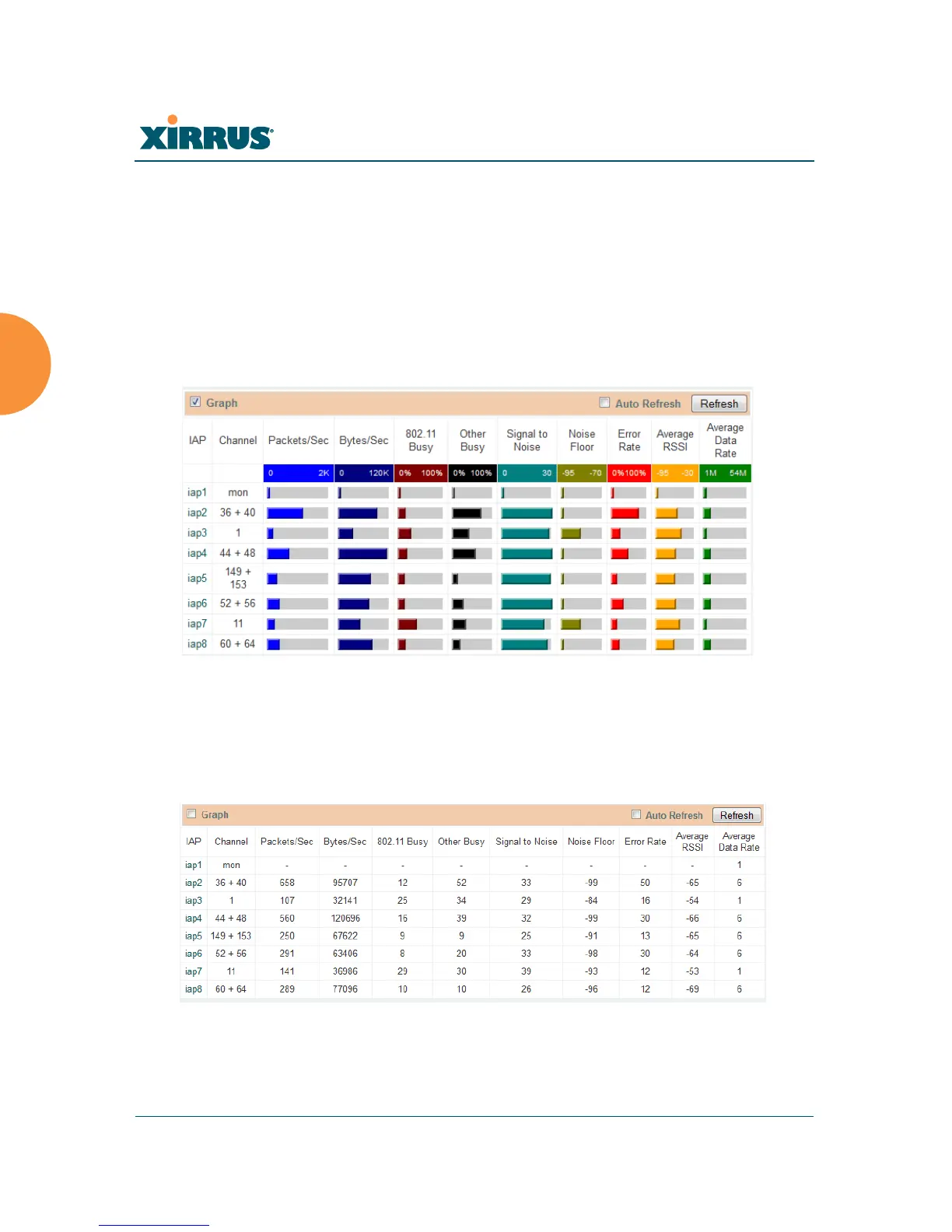

Figure 60. RF Monitor — IAPs
Figure 60 presents the data as a graphical display, enabled by selecting the Graph
checkbox on the upper left. If this option is not selected, data is presented as a
numerical table.
Figure 61. RF Monitor — IAPs
