W
ir
eless Array
Viewing Status on the Wir
eless Array
137

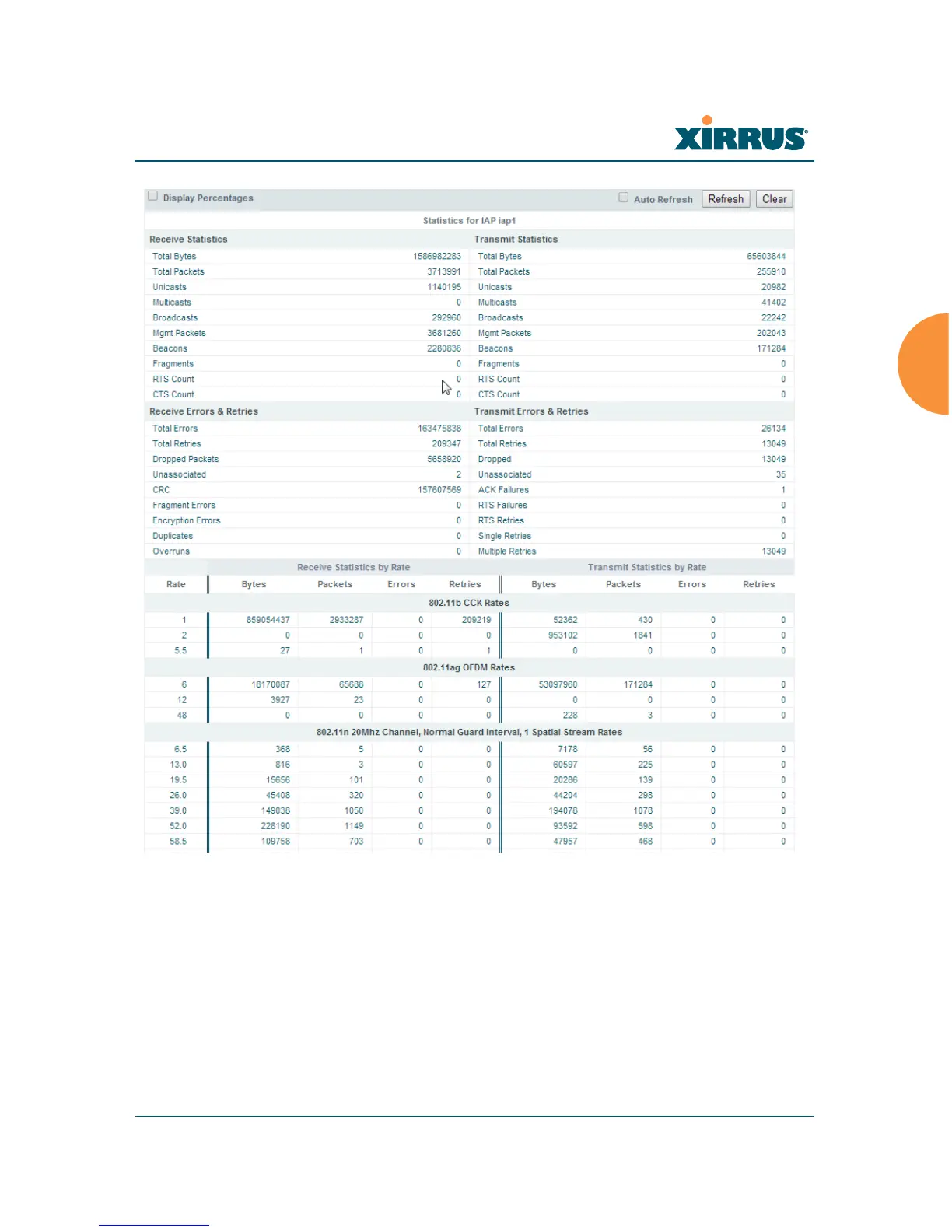

Figure 80. Individual
IAP Statistics Page
Yo
u
c
a
n
Refresh
the data (update the window wi
th the latest inf
ormation) or
Clear
the data (res
et all content to zero an
d begin counting again) at any time by
clicking on the appropriate button. Y
ou can also click in the
Auto Refresh
check
box to instruct the Array to refr
esh this window automatically
.
See Also
System Log W
indow
158
