Xirrus XR-520 User Manual

Wireless Array
Installing the Wireless Array 63
Installing Your Wireless Array
This section provides information about the physical installation of your Xirrus
Wireless Array. For complete instructions, please see the Quick Installation Guide
(QIG) for your model of Array or Access Point.
Choosing a Location
Based on coverage, capacity and deployment examples previously discussed,
choose a location for the Array that will provide the best results for your needs.
The Wireless Array was designed to be mounted on a ceiling where the unit is
unobtrusive and wireless transmissions can travel unimpeded throughout open
plan areas.
Choose a location that is central to your users (see the following diagram for
correct placement.

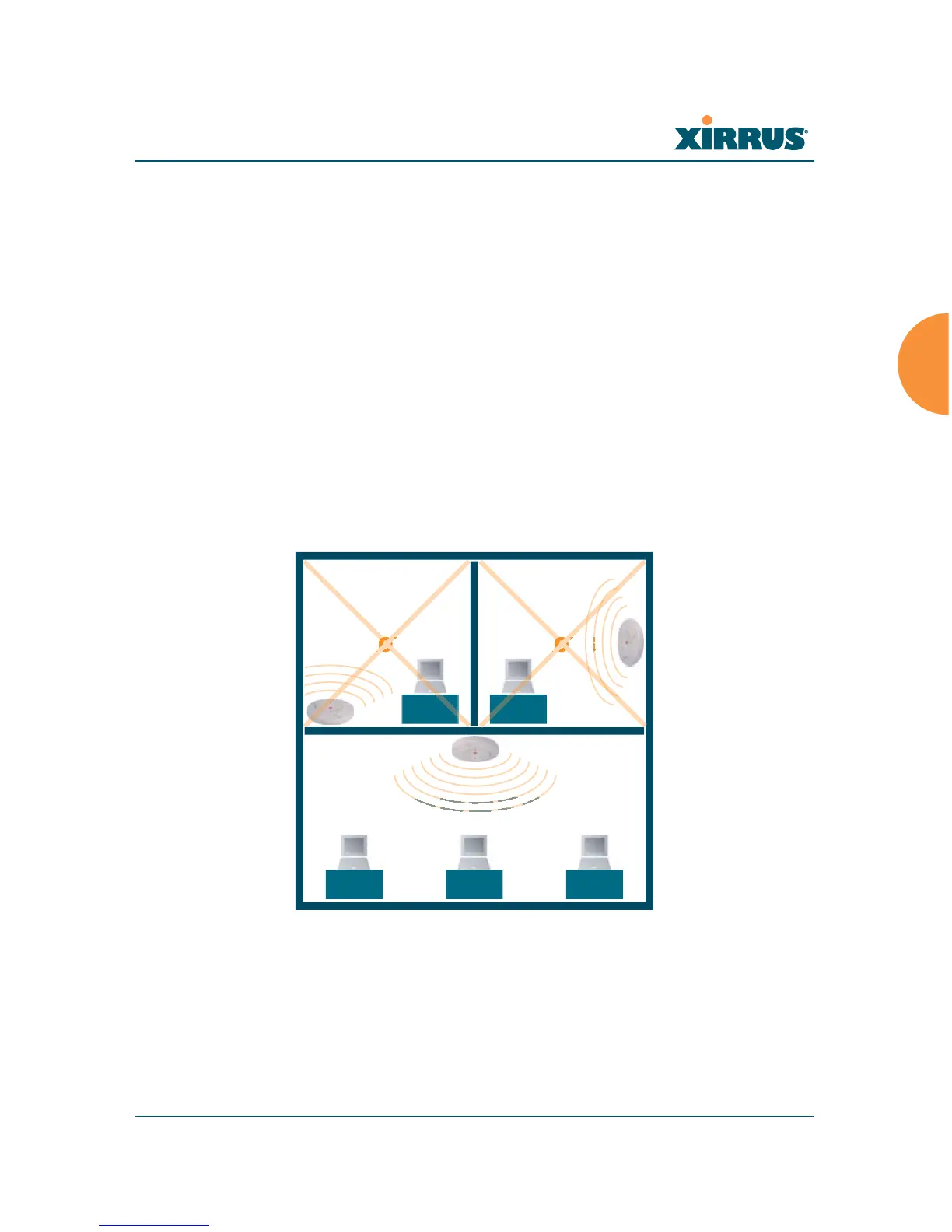

Figure 30. Array Placement
Wiring Considerations
Before using the Xirrus-supplied Power over Gigabit Ethernet modules (PoGE) to
distribute power, see “Power over Gigabit Ethernet (PoGE)” on page 12.
WR
ONG
CORRECT
R
ORRE
R
ORREC
WR
ONG
G
G
O
ON
R
O
R
ON
ON
R
O
R
ON

Xirrus XR-520 Specifications

General

Brand	Xirrus
Model	XR-520
Category	Wireless Access Point
Language	English
