Xirrus XR-520 User Manual

Wireless Array
Installing the Wireless Array 47
Failover Planning
This section discusses failover protection at the unit and port levels. To ensure
that service is continued in the event of a port failure, you can utilize two Gigabit
Ethernet ports simultaneously as a bonded pair (on Arrays with two or more
Gigabit ports).

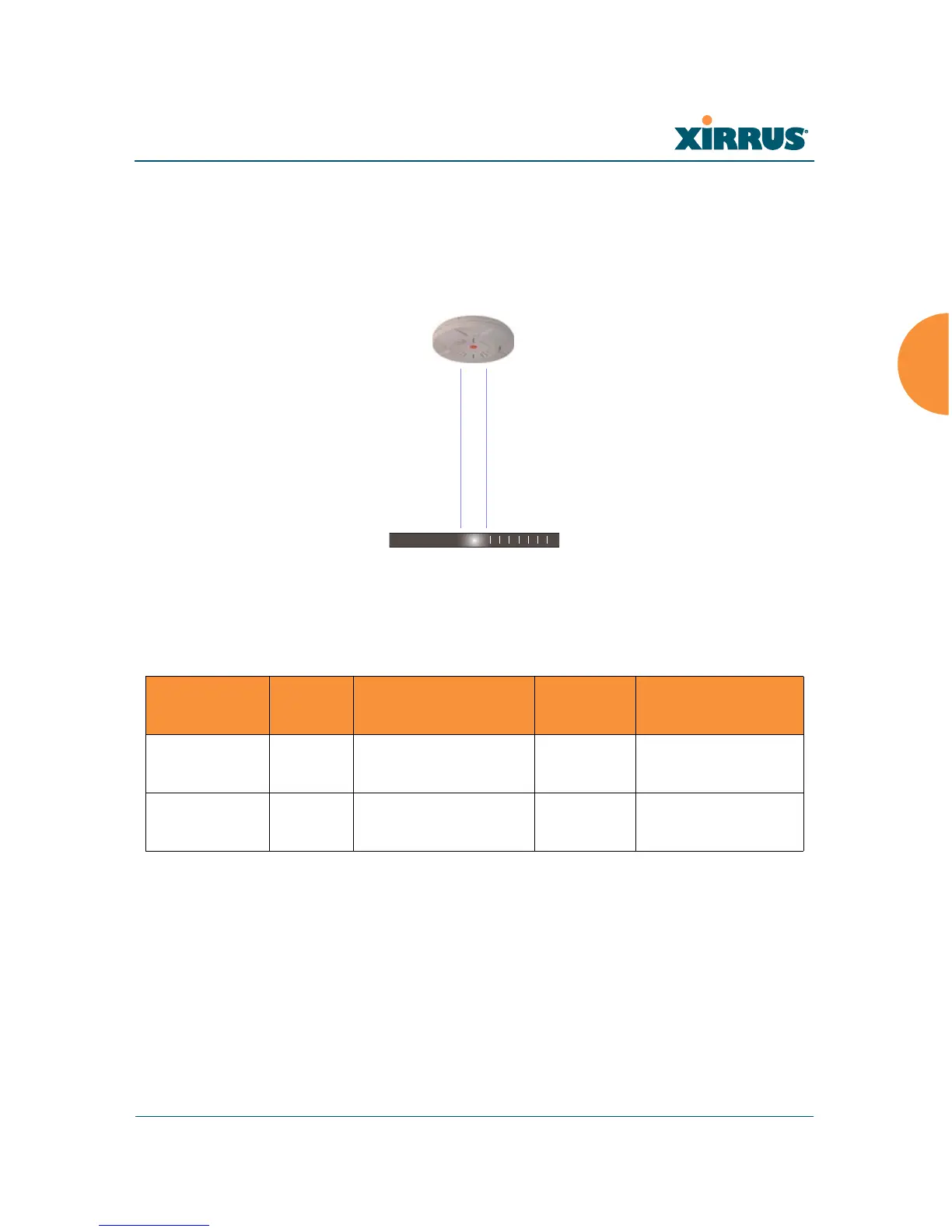

Figure 23. Port Failover Protection
In addition, the Array has full failover protection between the bonded-pair
Gigabit ports (see following table).
The Wireless Array Gigabit Ethernet ports actually support a number of modes:
 802.3ad Link Aggregation
 Load Balancing
 Broadcast
 Link Backup
 Mirrored
Interface
Bridges
Data?
Bridges
Management Traffic?
Fails Over
To:
IP address
Gigabit port Yes Yes Bonded
port
DHCP or static
Bonded
Gigabit port
Yes Yes Bonded
port
Same
Ethernet switch
Multiple port connections
