one is directed to a mobile phone. When a transmission is complete, the antennas
are reallocated.

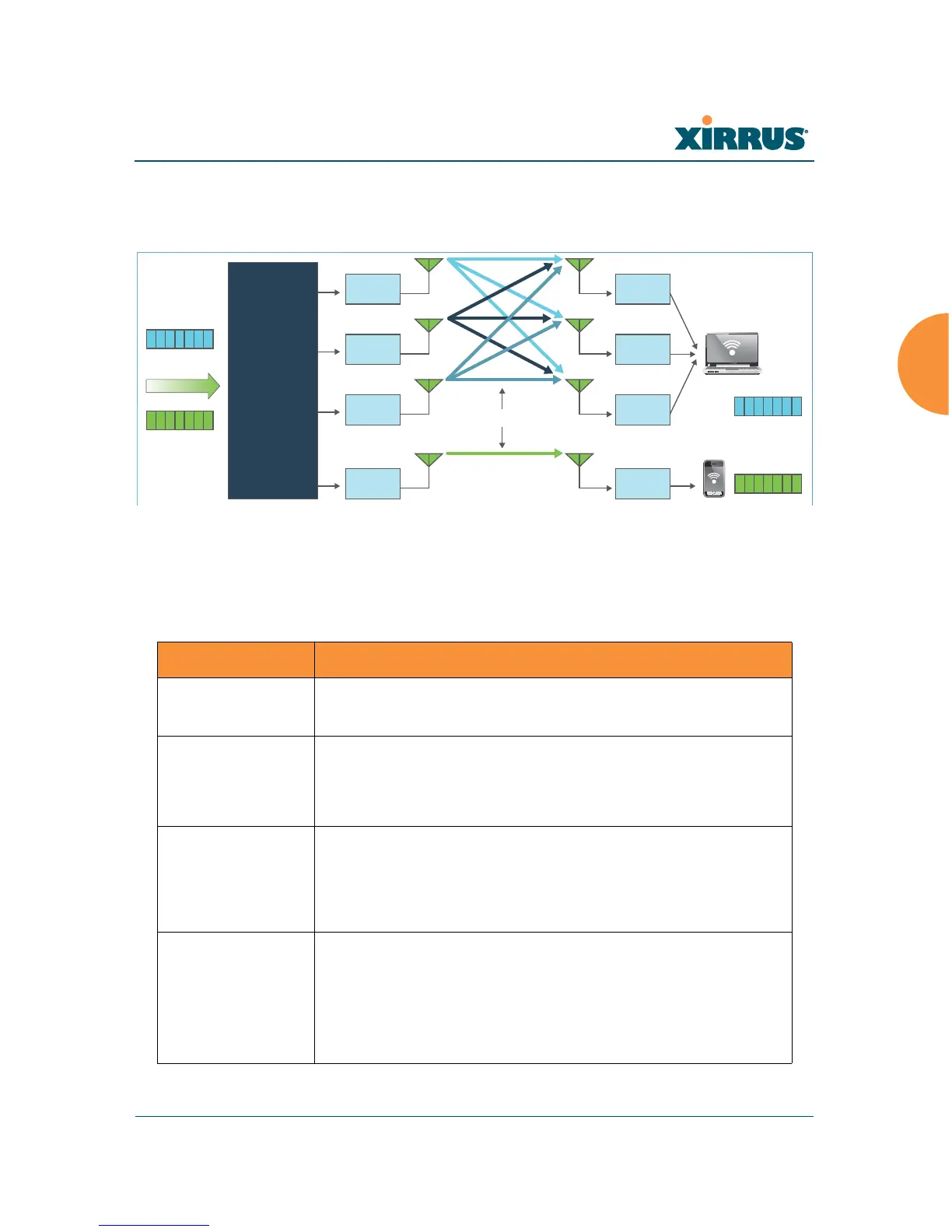

Figure 19. MU-MIMO with Four Antennas
The table below illustrates how data streams might be allocated to multiple users
on an 802.11ac transmitter with multiple antennas.
# of AP Antennas Possible Combinations of Receiver Antennas
2 1 station w/ 2 antennas -or-
2 stations w/ 1 antenna
3 1 station w/ 3 antennas -or-
1 station w/ 2 antennas + 1 station w/ 1 antenna -or-
3 stations w/ 1 antenna
4 1 station w/4 antennas -or-
2 stations w/2 antennas -or-
1 station w/2 antennas + 2 stations w/1 antenna -or-
4 stations w/ 1 antenna
8 1 station w/ 8 antennas -or-
2 stations w/ 4 antennas -or-
1 station w/ 4 antennas + 2 stations w/ 2 antennas -or-
2 stations w/ 2 antennas + 4 stations w/1 antenna -or-
… many other combinations …
