Installing the Wireless Array

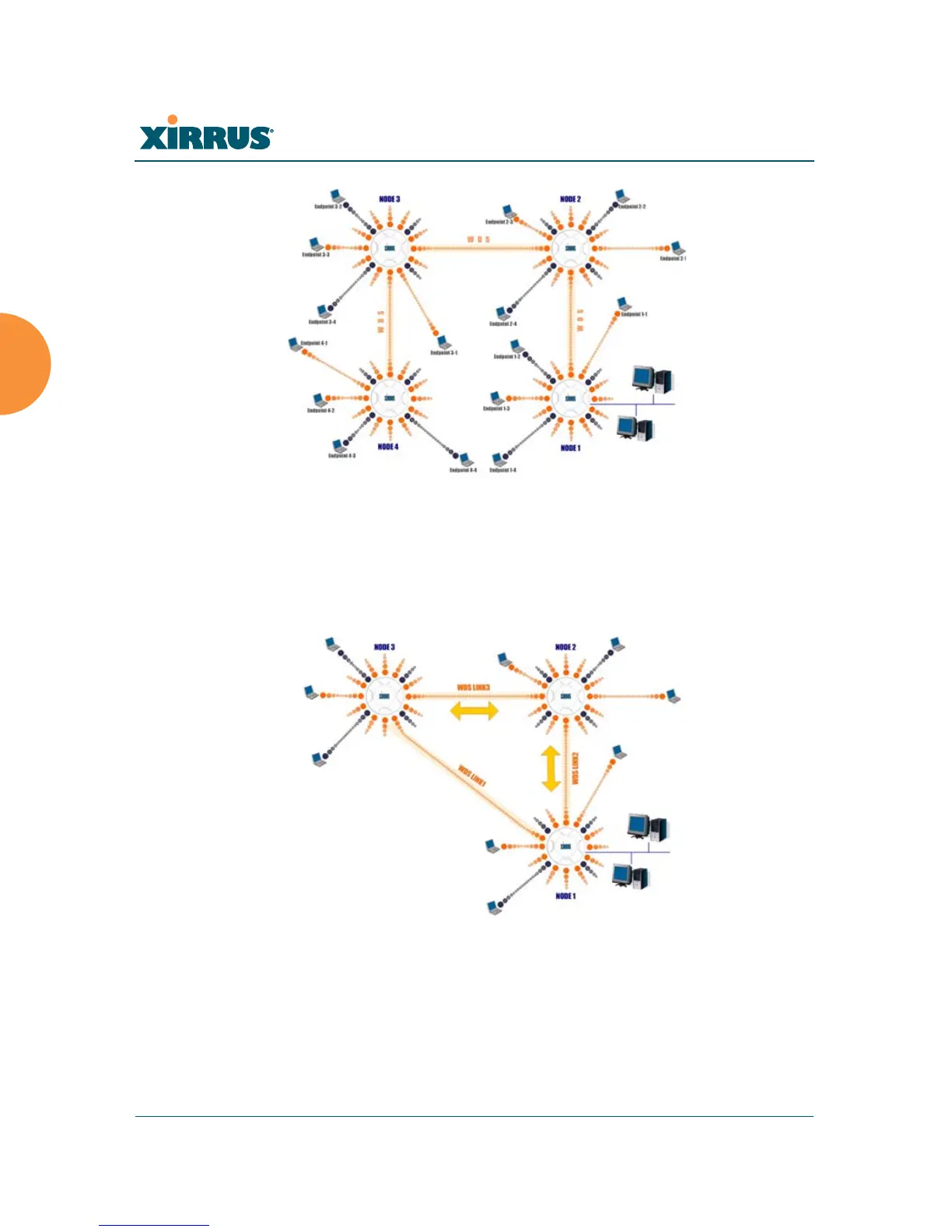

Figure 27. A
Multiple Hop WDS Connection
Multiple WDS li
nks can provide link r
edunda
ncy (failover capability - see
Figur
e 28
). A network protocol (Spanning
T
ree
Protocol — STP)
prevents
Arrays fr
om forming network loops.
Figure 28
. WDS Failover Protection
79
