each edge. To calculate recording time, multiply interval by number of frames.
Camera-selective
control inputs
Number of
images
Number of
images
IntervalInterval
StartStart
Control input opens
positive edge triggered
Control input closes
negative edge triggered
This image sequence
is recorded
This image sequence
is recorded
"Opening": on"Closing": on
Front view

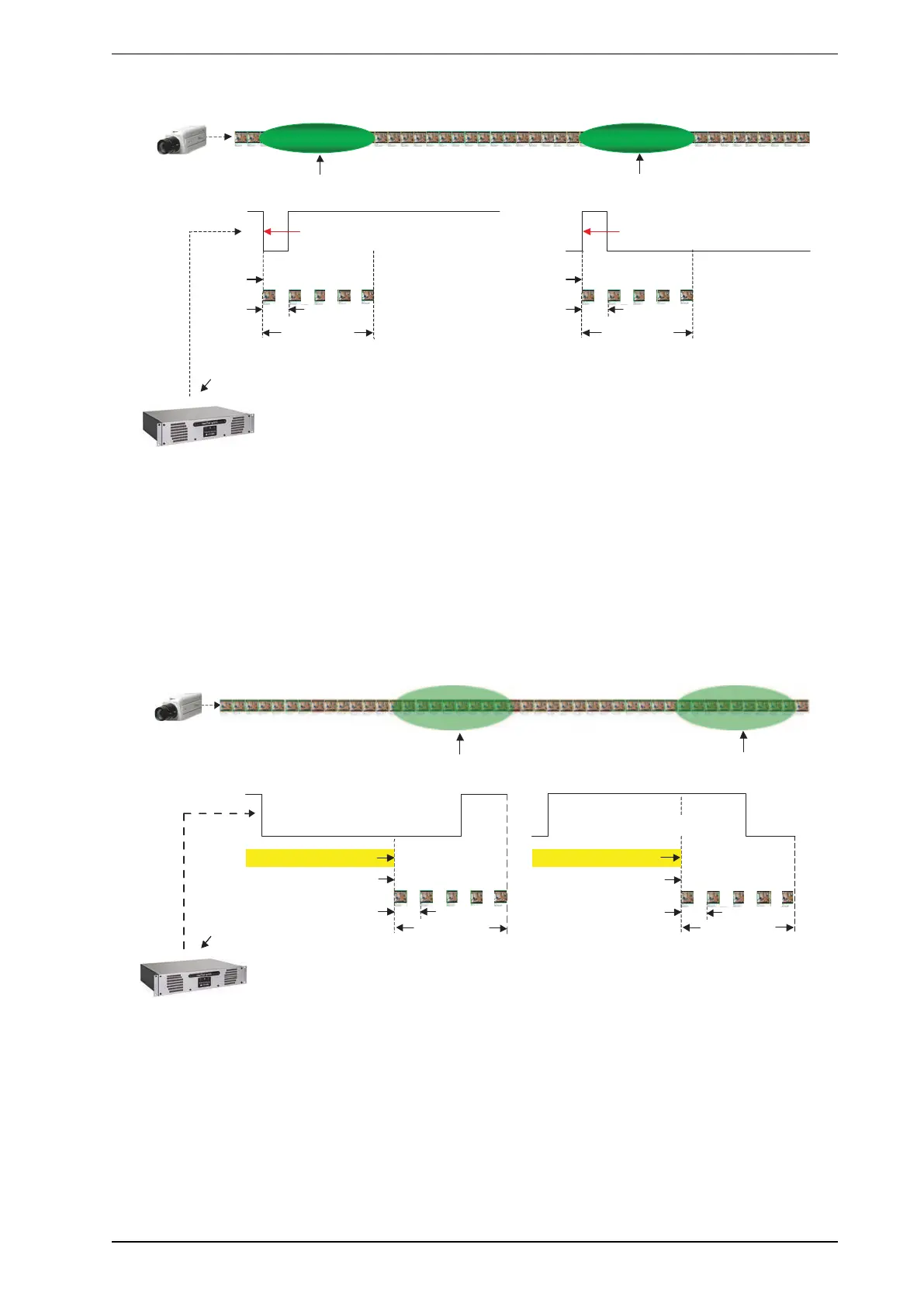

Figure 9-2: Continuous recording with edge sensitive control input
Continuous recording and IntrusionTrace.h
IntrusionTrace.h with adjustable sensitivity and definable detection areas can be used for recording according
to the same principles ruling continuous recording with external detectors. It is important to consider the state
of the respective control input Open or Closed. In addition, the recording interval and the number of frames to
be recorded can be defined for each detected motion. To calculate recording time, multiply interval by number
of frames.
Control input closed Control input open (default)
Start
Motion is detected
Start
Interval
Number of
images
Interval
Number of
images
This image sequence
is recorded
Motion is detected
Camera-selective
control inputs
This image sequence
is recorded
Front view
Figure 9-3: Continuous recording with IntrusionTrace and edge sensitive control input
Event triggered recording
50,000 events can be stored for each camera. Each event consists of an alarm image and the pre- and post-
alarm sequences.
