Equipment operation
94

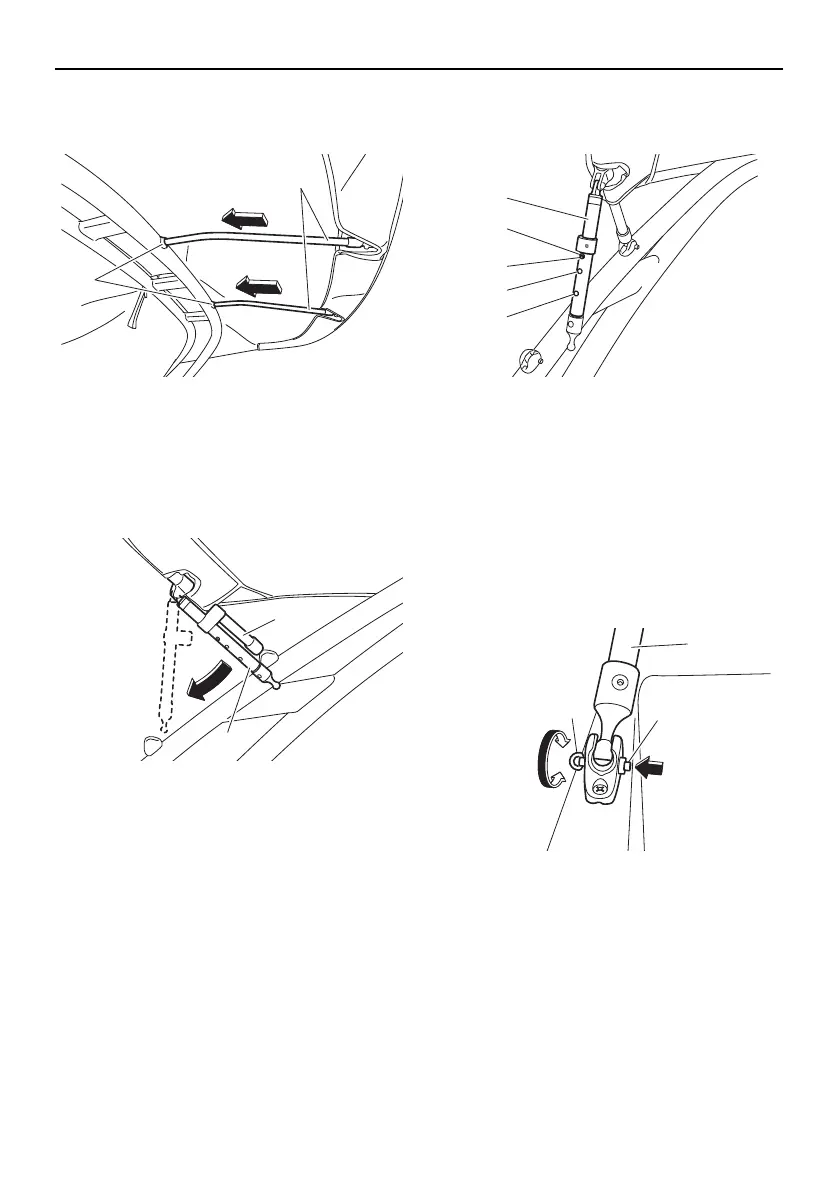

(3) Insert the front support poles into the
mounting holes in the wakeboard tower.
1 Mounting hole
2 Front support pole
(4) Pull the rear of the bimini top toward the
stern, and then unhook the rear support
poles from the main pole.
1 Rear support pole
2 Main pole
(5) Push the snap button and extend each
rear support pole to the long position.
1 Rear support pole
2 Snap button
3 Short position
4 Middle position
5 Long position
(6) Fit the end of each rear support pole
into the rear support pole mounting
bracket, and then push the button and
turn the D-ring to secure the pole.
1 Rear support pole
2 Button
3 D-ring
2
1
1
2
1
2
3
4
5
3
2
1
