Yamaha AR190 2021 - Helm Components

Description
31

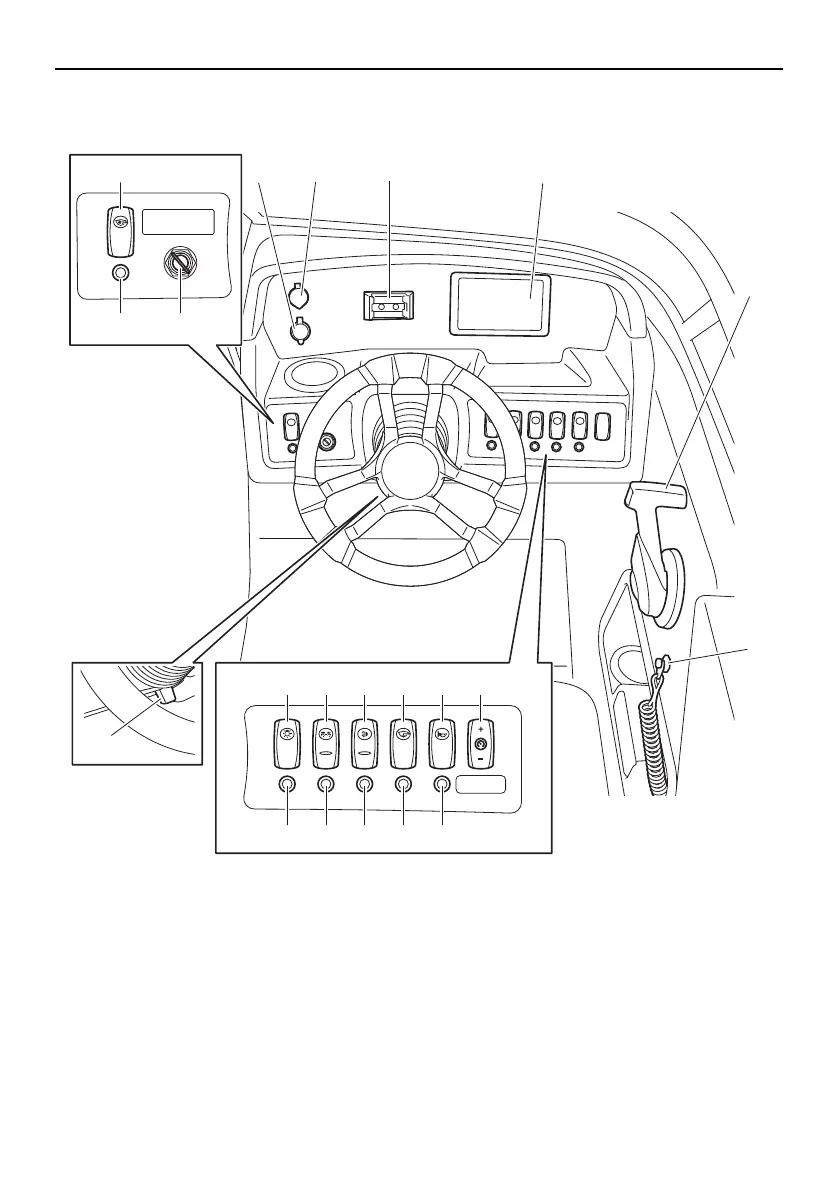

Helm components
195S
1 12 V DC outlet (page 46)
2 Aux input (page 46)
3 Phone holder
4 Multi-function meter (page 48)
5 Remote control lever (page 46)
6 Engine shut-off switch (page 36)
7 No-wake mode / cruise assist switch (page
43)
8 Horn switch (page 41)
9 Bilge pump switch (page 41)
10 Docking light (page 43)
11 Navigation and anchor lights switch (page 42)
12 Courtesy light switch (page 42)
13 Switch circuit breaker (page 43)
14 Tilt lever (page 40)
15 Main switch (page 37)
16 Blower switch (page 41)
BLOWER
HORNBILGENAV/ANC
DOCK
LIGHTS
CTSY
LIGHTS
16
1 2 34
5
6
12 11 10
98
13 13 13 13 13
7
13
15
14
