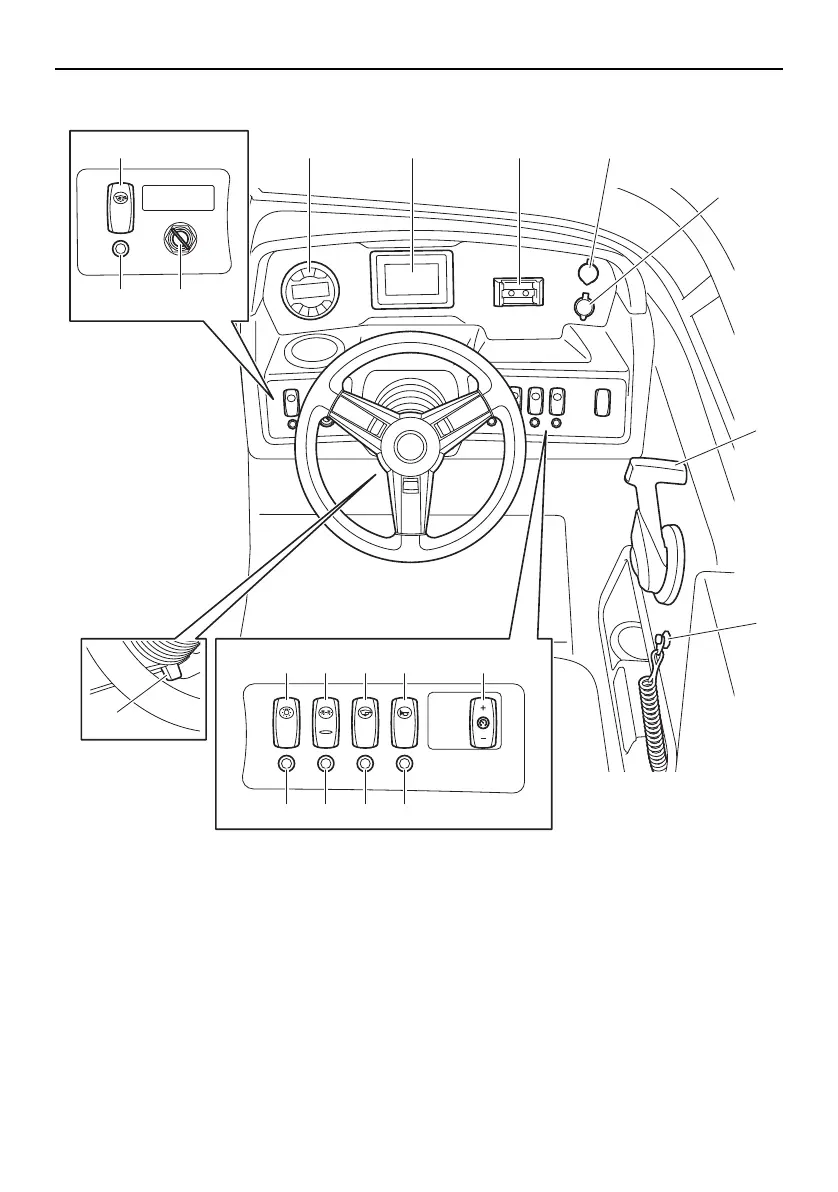

Description
32
AR195 / SX195 / AR190 / SX190
1 Stereo receiver (page 46)
2 Multi-function meter (page 66)
3 Phone holder
4 Aux input (page 46)
5 12 V DC outlet (page 46)
6 Remote control lever (page 37)
7 Engine shut-off switch (page 36)
8 No-wake mode / cruise assist switch (page
43)
9 Horn switch (page 41)
10 Bilge pump switch (page 41)
11 Navigation and anchor lights switch (page 42)
12 Courtesy light switch (page 42)
13 Switch circuit breaker (page 43)
14 Tilt lever (page 40)
15 Main switch (page 37)
16 Blower switch (page 41)
HORNBILGENAV/ANC
CTSY
LIGHTS
BLOWER
16 1 2 3 4
5
6
7
12 11 10 9
13
15
13 13 13 13
8
14
