Equipment operation
85

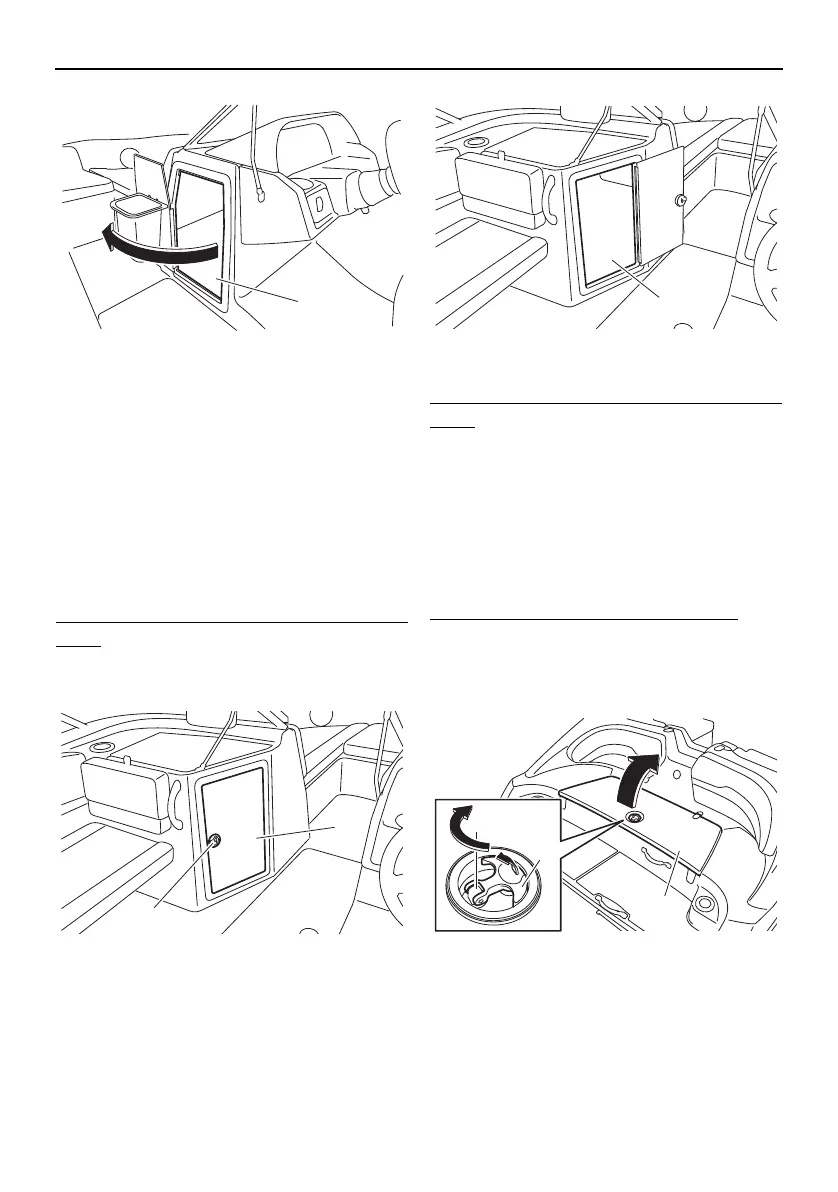

1 Driver’s side console compartment
TIP:
The driver’s side console compartment is
connected to the front underseat storage
compartment (starboard).
Port console storage compartment
The port console storage compartment is a
large storage compartment that is located in
the port console.
To open the port console storage compart-
ment:
Pull the port console storage compartment
door latch to open the door.
1 Port console storage compartment door latch
2 Port console storage compartment door
1 Port console storage compartment
To close the port console storage compart-
ment:
Close the port console storage compartment
door, and then push it to securely lock it in
place.
Wet storage compartment
The wet storage compartment is located un-
der the swim platform.
To open the wet storage compartment:
(1) Pull the lock handle up.
(2) Turn the lock handle clockwise, and then
open the rear platform hatch.
1 Lock handle
2 Rear platform hatch
