Location of main components

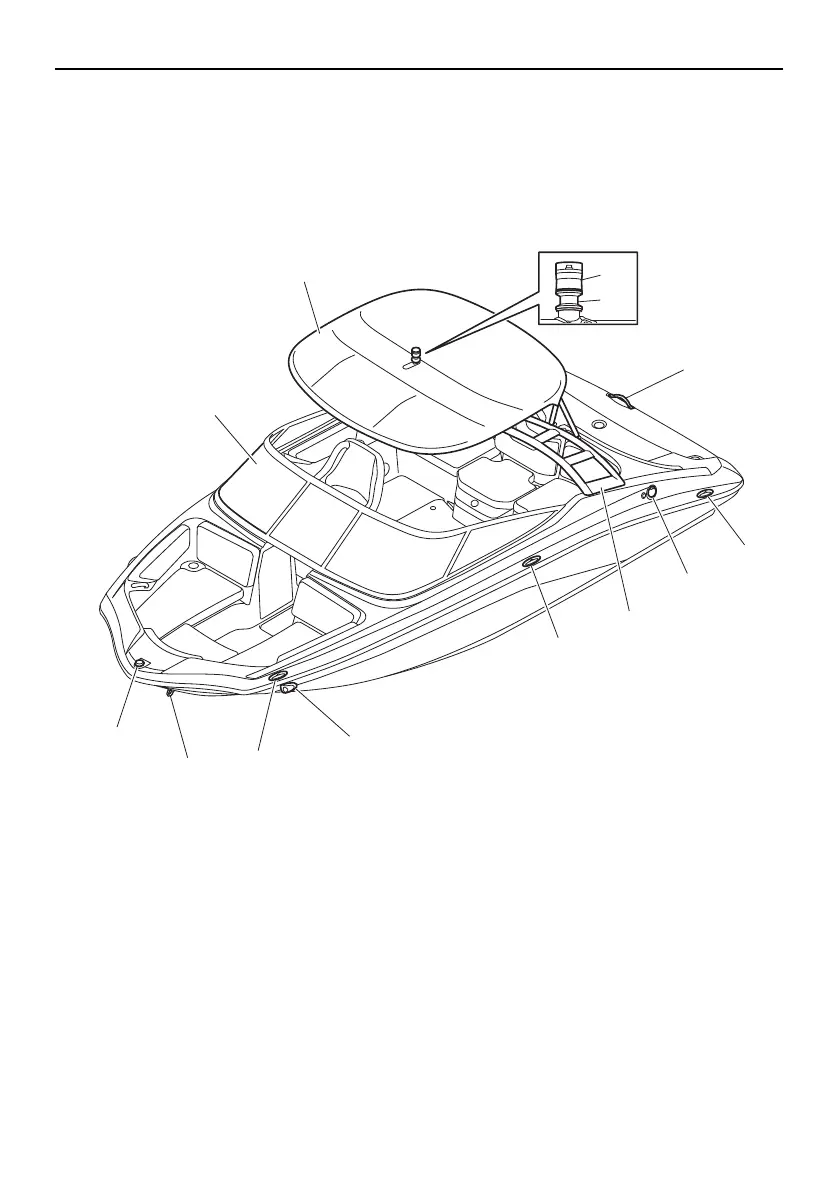

Exterior components
195S / AR195 / AR190
1 Windshield (page 87)
2 Bimini top (page 93)
3 Anchor light (page 42, 88)
4 Tow p y l on
5 Reboarding grip
6 Cleat
7 Fuel tank filler cap (page 99)
8 Wakeboard tower (page 92)
9 Docking light (195S) (page 43)
10 Bow eye
11 Bow light (page 42)
1
11
10
5
6
7
6
6
9
2
8
3
4
