Operation and handling requirements
102

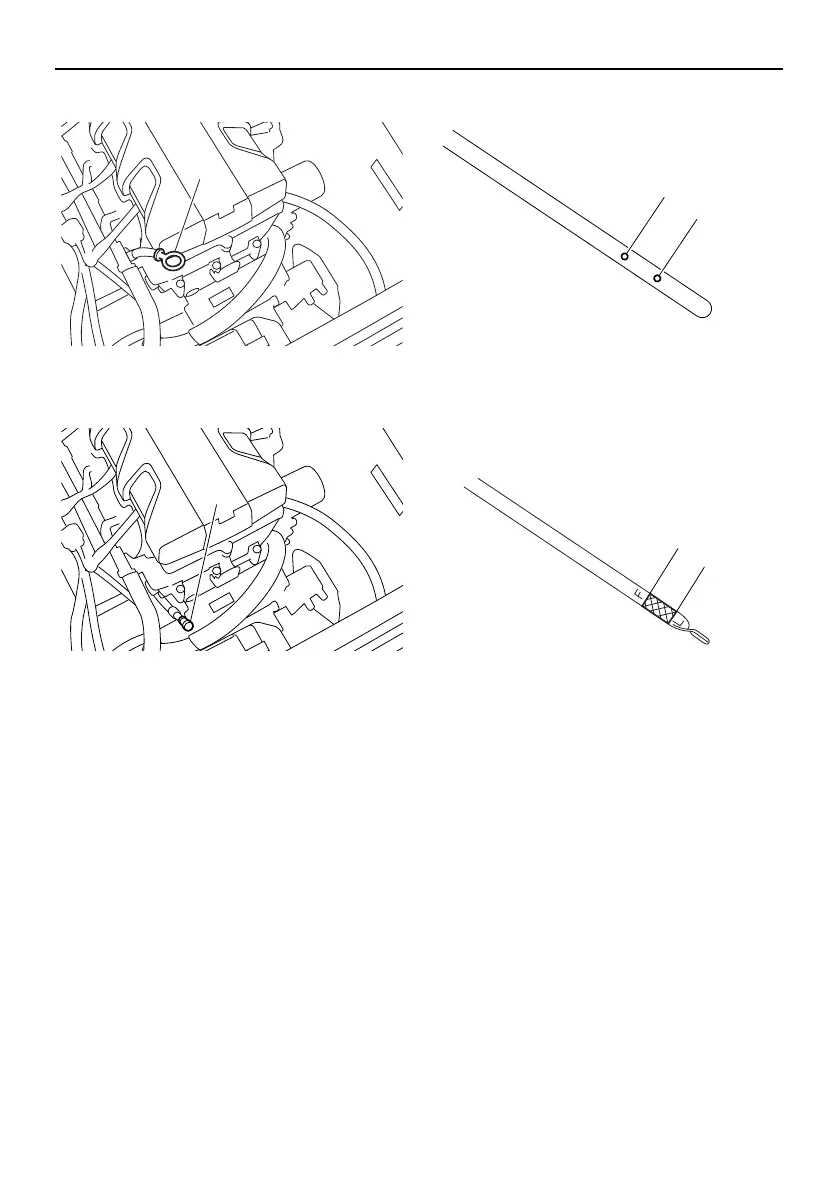

AR190 / SX190 (3-star models)
1 Dipstick
AR190 / SX190 (4-star models)
1 Dipstick
(4) Insert the dipstick back into the dipstick
tube completely. Remove the dipstick
again and check that the engine oil level
is between the minimum level mark and
maximum level mark.
3-star models
1 Maximum level mark
2 Minimum level mark
4-star models
1 Maximum level mark
2 Minimum level mark
(5) If the engine oil level is significantly
above the maximum level mark, consult
a Yamaha Boat Dealer. If the engine oil
level is below the minimum level mark,
add engine oil.
(6) Remove the engine oil filler cap.
1
1
2
1
2
1
