Trouble recovery
152
the rear underseat storage compartment
(port).

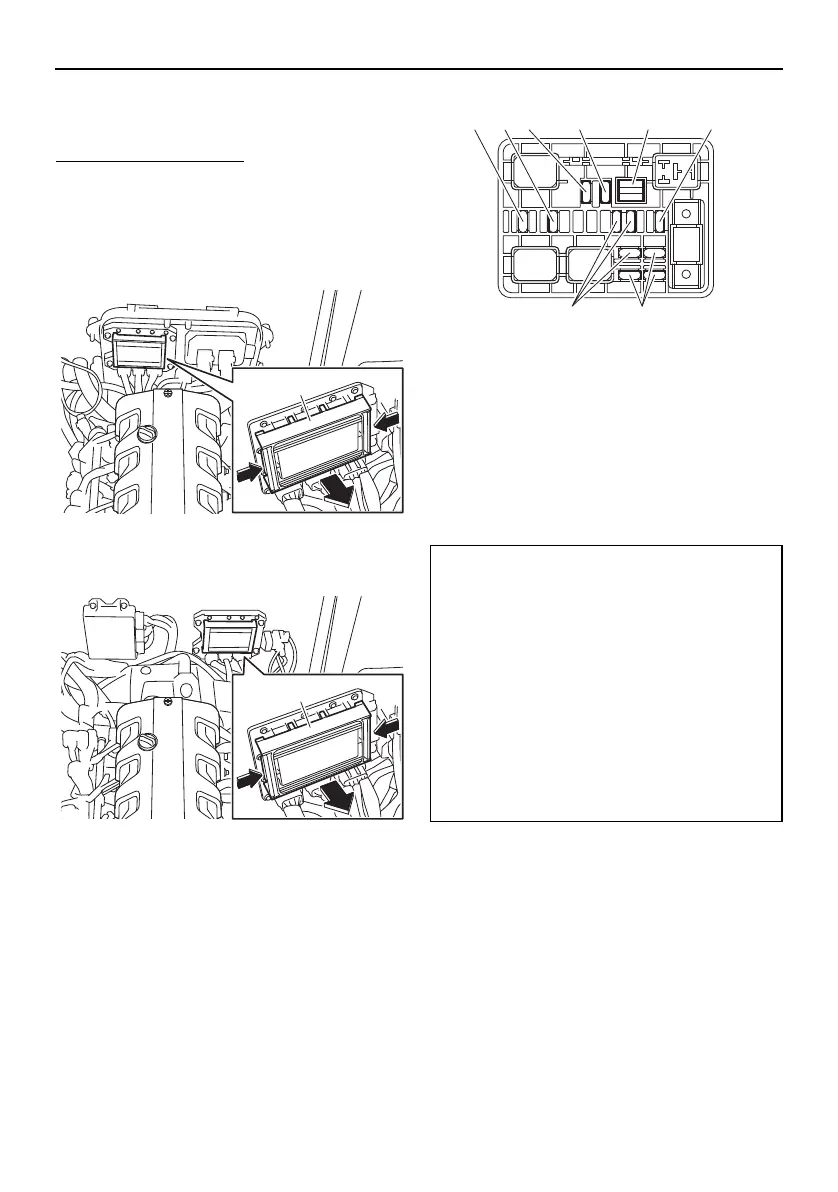

To access the fuse box:
(1) Open the engine hood. (See page 81.)
(2) While pushing both sides of the fuse box
cover inward, pull the cover toward the
bow and remove it.
3-star models
1 Fuse box cover
4-star models
1 Fuse box cover
1 Electronic throttle valve fuse
2 Fuel pump fuse
3 Main relay drive fuse
4 Main fuse
5 Fuse puller
6 Battery fuse
7 Spare fuse
8 Unused fuse
1
1
Fuse amperage:
Electronic throttle valve fuse:
10 A
Fuel pump fuse:
10 A
Main relay drive fuse:
10 A
Main fuse:
20 A
Battery fuse:
30 A
123 4 5 6
78
