Equipment operation
89

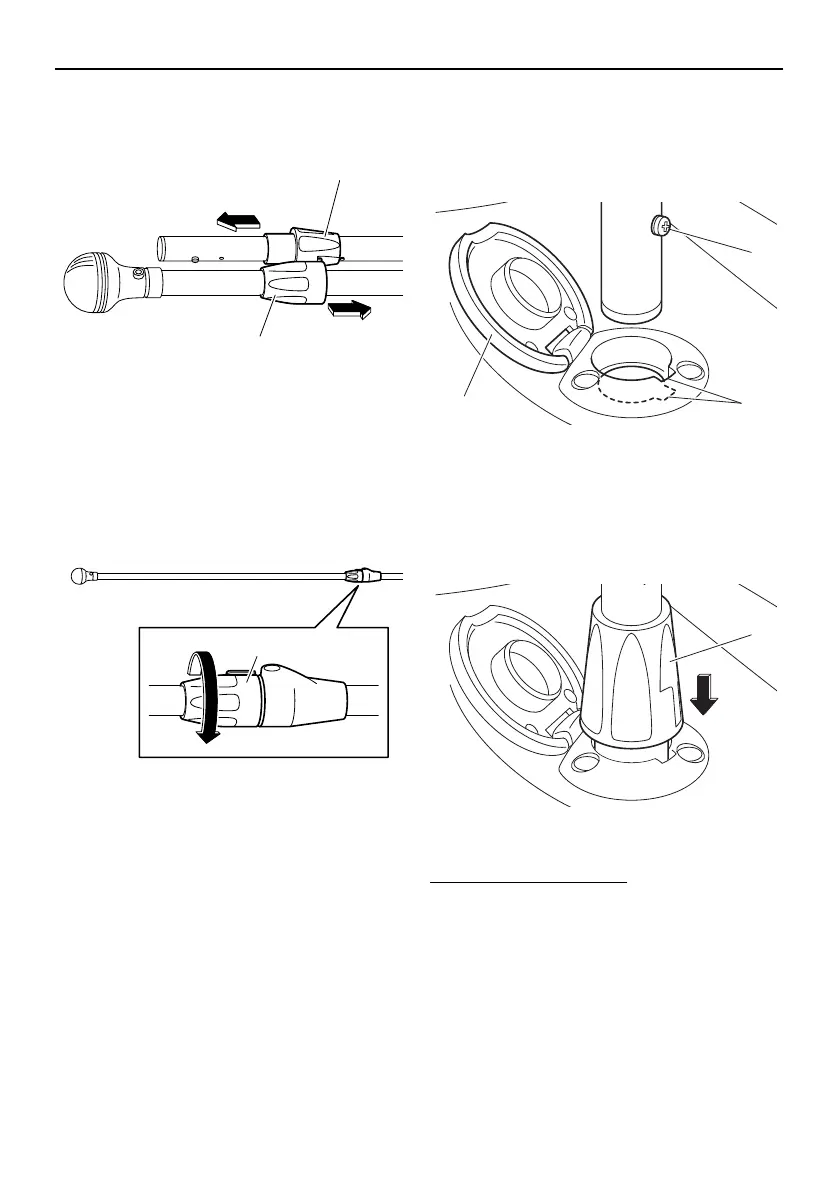

(3) Slide anchor light stoppers A and B apart
to disconnect them.
1 Anchor light stopper A
2 Anchor light stopper B
(4) Extend the anchor light pole, and then
screw anchor light stopper A onto the
center section of the pole.
1 Anchor light stopper A
(5) Open the cap of the anchor light socket,
fit the protrusion on the anchor light into
the slot in the socket, and then install the
light into the socket.
1 Cap
2 Slot
3 Protrusion
(6) Fit anchor light stopper B into the anchor
light socket.
1 Anchor light stopper
To store the anchor light:
(1) Pull anchor light stopper B upward, re-
move the anchor light, and then close the
cap of the anchor light socket.
(2) Unscrew anchor light stopper A from the
center section of the anchor light pole,
and then fold the pole.
2
1
1
2
3
1
1
