E

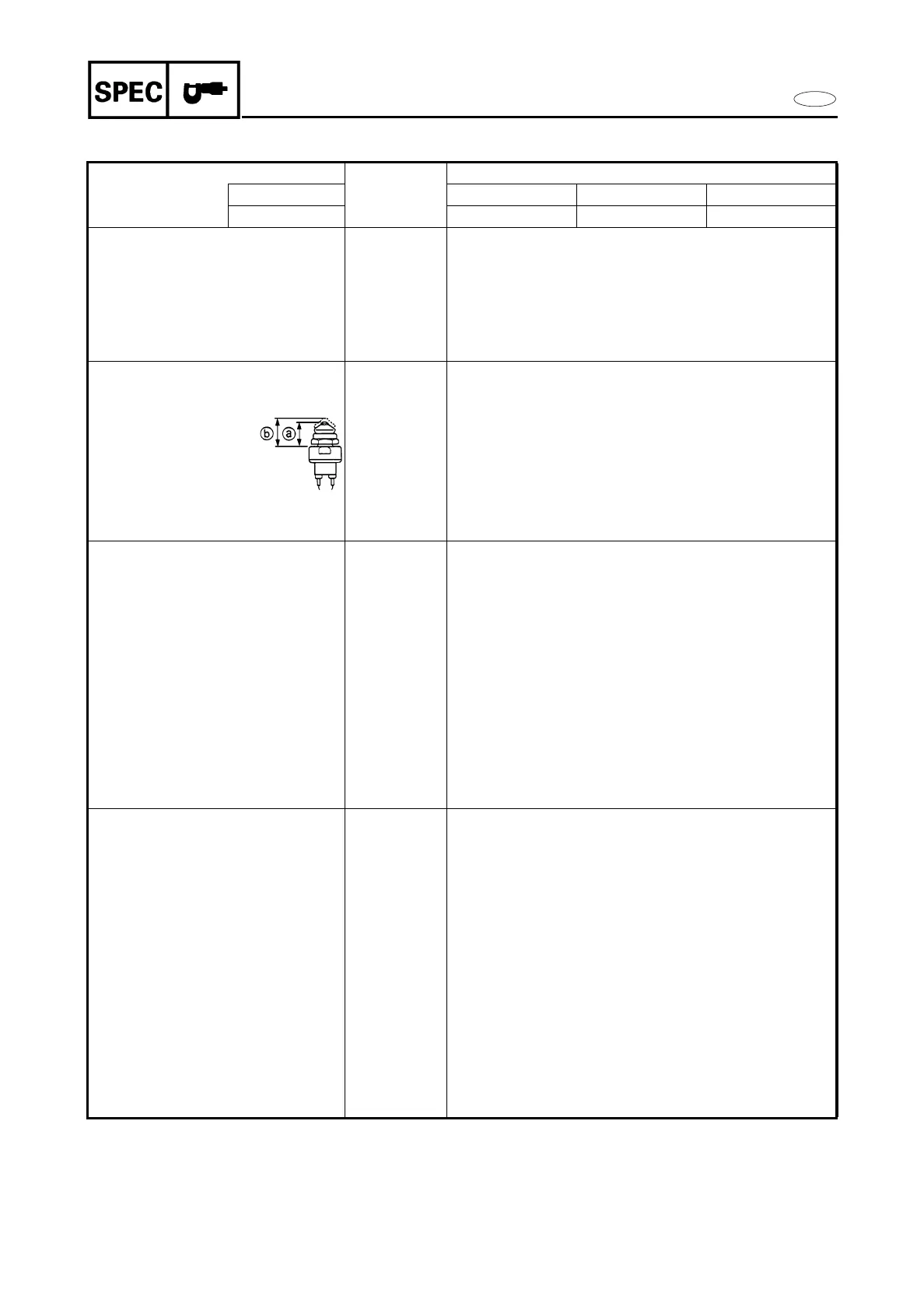

MAINTENANCE SPECIFICATIONS
Unit
Model
Item Worldwide E60HMHD E60HWHD E60HWD
USA, Canada E60MH E60EH —
IGNITION CONTROL SYSTEM
Thermo switch
On temperature °C (°F) 87 (188.6)
Off temperature °C (°F) 67 (152.6)
Over heat warning lamp
Rating V 1.7
STARTING SYSTEM
Neutral switch
Length
a
(on)
mm (in) 18.5 - 19.5 (0.73 - 0.77)
Length
b
(off)
mm (in) 19.5 - 20.5 (0.77 - 0.81)
Fuse rating V - A 12 - 10
STARTER MOTOR
Type Hitachi S108-97A
Output kW 0.6
Brush length mm (in) 12.5 (0.49)
Wear limit mm (in) 9.0 (0.35)
Commutator diameter mm (in) 30.0 (1.18)
<Limit> mm (in) 29.0 (1.14)
Commutator under cut mm (in) 0.5-0.8 (0.02-0.03)
<Limit> mm (in) 0.2 (0.01)
Clutch type
Over running
Pinion - ring gear gap mm (in) 3.0 - 5.0 (0.12 - 0.20)
Rating Sec. 30
CHARGING SYSTEM
Lighting coil output peak voltage
@ cranking 1 (G - G) V 5.6 (no load)
@ cranking 2 (G - G) V 5.6 (no load)
@ 1,500 r/min (G - G) V 21.6 (no load)
@ 3,500 r/min (G - G) V 47.2 (no load)
Lighting coil resistance (1-coil)
Ω
0.41 - 0.50
Lighting coil resistance (2-coils)
Ω
1.31 - 1.60
Rectifier/regulator output peak
voltage
@ cranking 1 (R - B) V 5.6 (no load)
@ cranking 2 (R - B) V 5.6 (no load)
@ 1,500 r/min (R - B) V 21.6 (no load)
@ 3,500 r/min (R - B) V 47.2 (no load)
*Cranking 1: Open circuit voltage
Cranking 2: Loaded circuit voltage
2-7
