PROPELLER SHAFT HOUSING ASSEMBLY

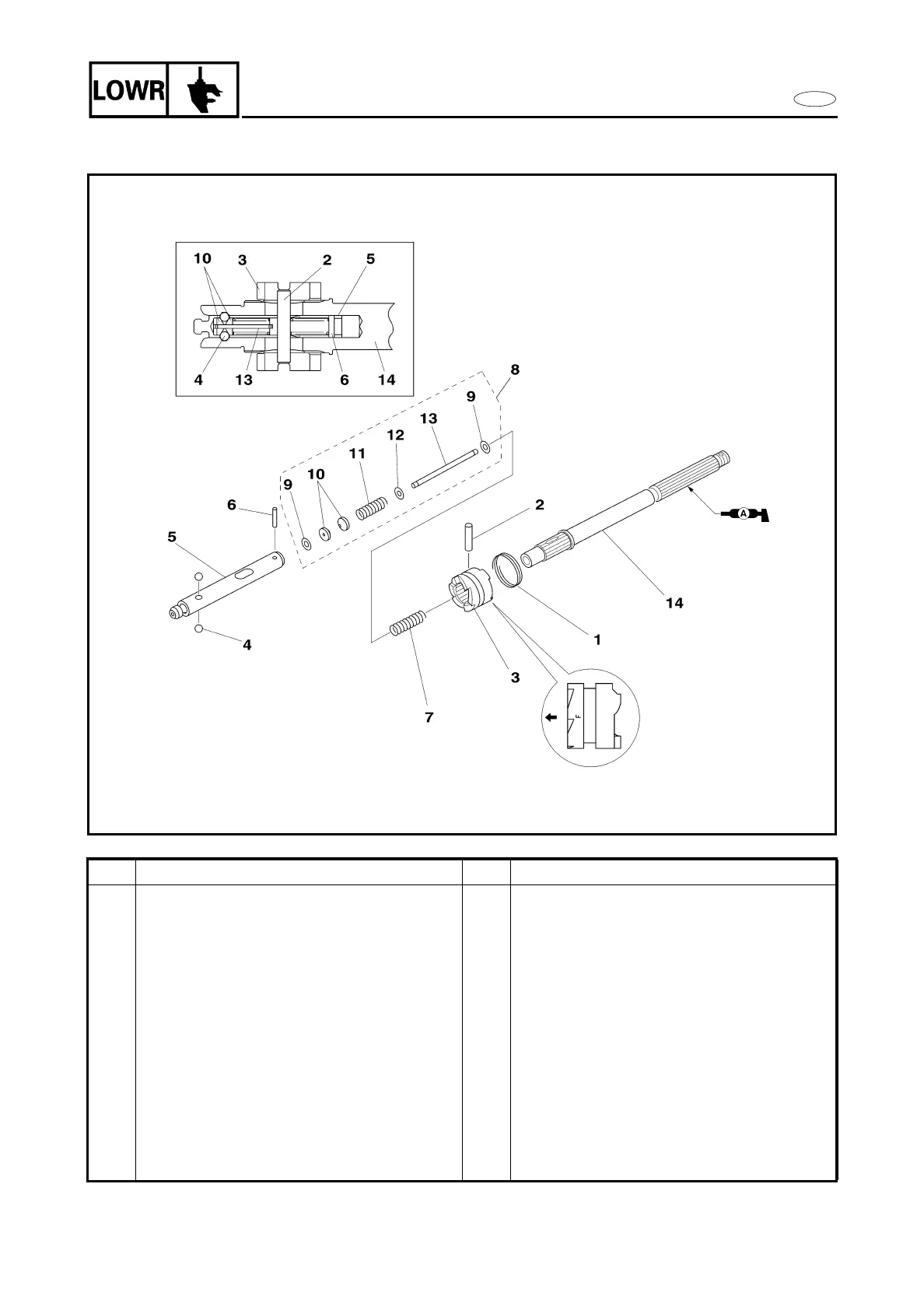

DISASSEMBLING/ASSEMBLING THE PROPELLER SHAFT ASSEMBLY
(SHIFT SLIDER TYPE)
Step Job/Part Q’ty Remarks
1
Cross pin ring
1
2
Cross pin
1
3
Clutch dog
1
4
Ball
2
5
Shifter slider
1
6
Pin
1
7
Spring
1
8
Free shaft assembly
1
9
Spring nut
2
10
Shift plunger
2
11
Spring
1
12
Plate washer
1
13
Free shaft
1
Continued on next page.
