Yamaha e60hmhd - UPPER CASE ASSEMBLY

E
UPPER CASE ASSEMBLY
UPPER CASE ASSEMBLY

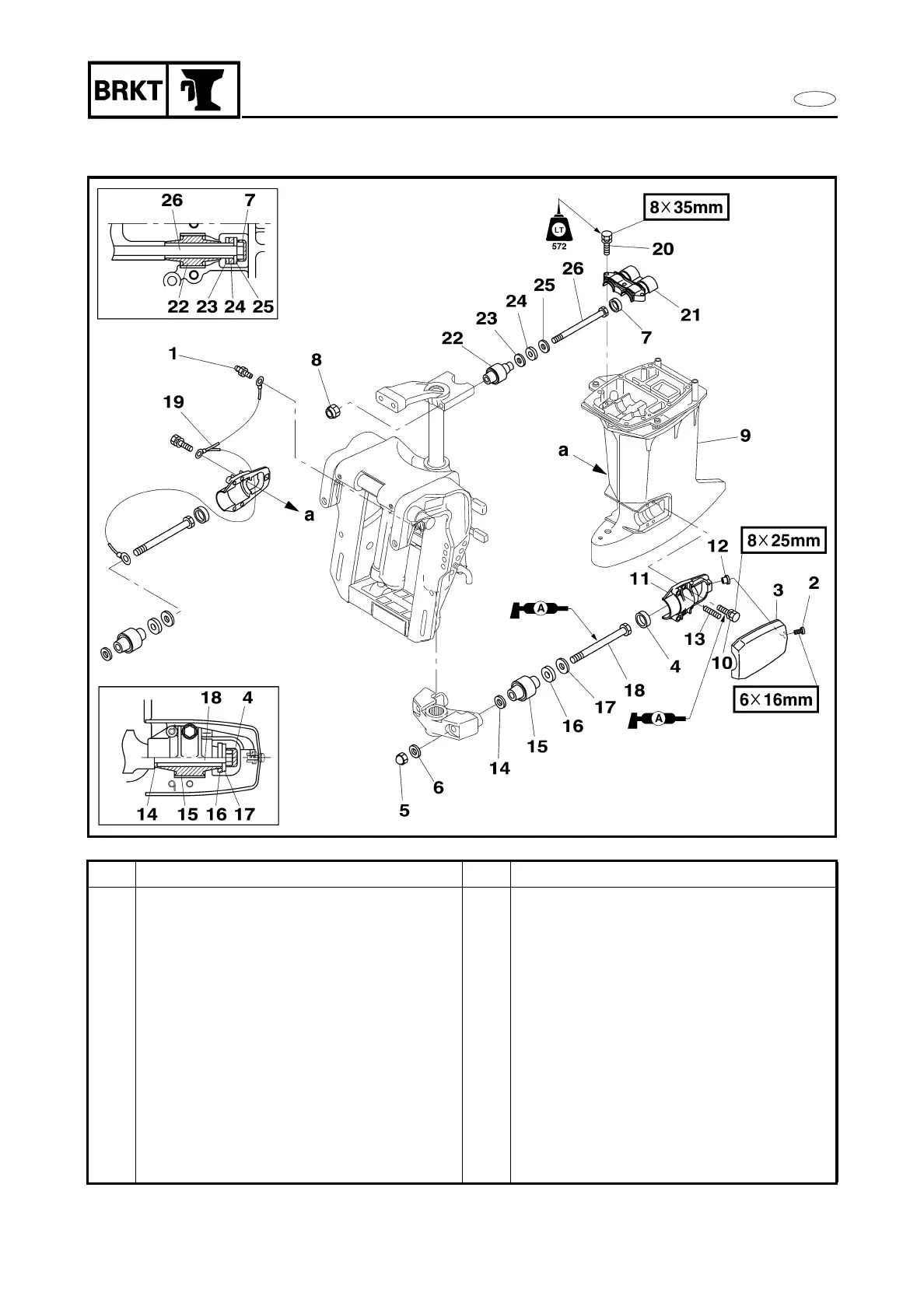

REMOVING/INSTALLING THE UPPER CASE ASSEMBLY
Step Job/Part Q’ty Remarks
1
Grease nipple
1
2
Screw
2
3
Lower mount cover
2
4
Rubber cap
2
5
Nut
2
6
Washer
2
7
Rubber cap
2
8
Nut
2
9
Lower case assembly
1
10
Bolt (with washer)
4
11
Lower rubber mount housing
2
12
Nut
2
13
Spring
4
Continued on next page.
7-15
