Yamaha F200B - Page 196

5-67
ELEC
Electrical system

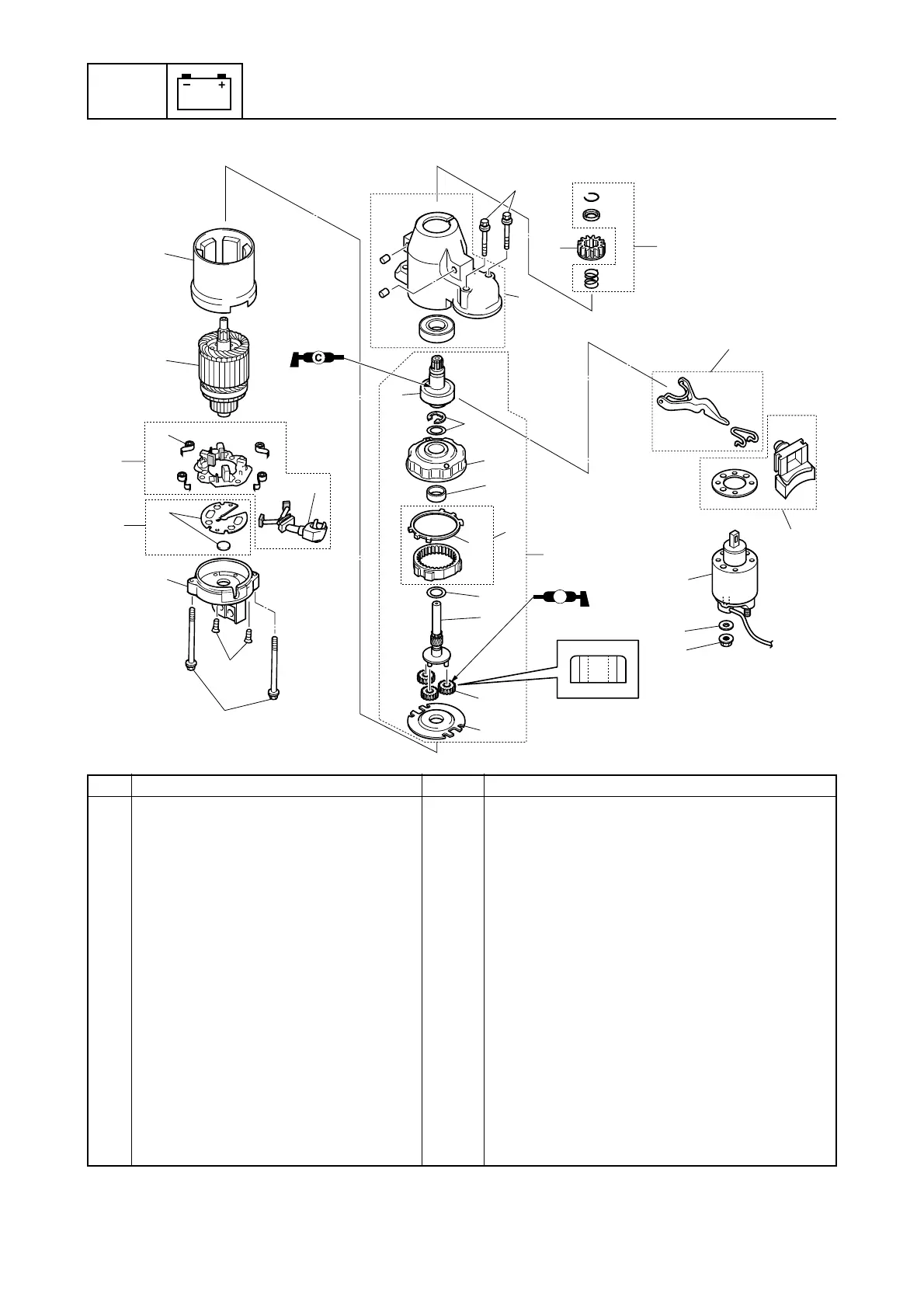

Starter motor
No. Part name Q’ty Remarks
1Stator 1
2 Armature 1
3 Brush holder assembly 1
4 Brush spring 4
5 Brush assembly 1
6 Starting motor gear assembly 1
7 Washer set 1
8Bracket 1
9Screw 2 M4 × 15 mm
10 Bolt 2 M6 × 117 mm
11 Bolt 2 M6 × 35 mm
12 Cover assembly 1
13 Clutch assembly 1
14 Bracket 1
15 Bearing 1
16 Outer gear 1
17 Gasket 1 39
