Technical features and description
Electronic control system
These models use electronic fuel injection control, digital ignition control, VCT control, knock con-
trol, over-rev control, alert control, ETV control, and fail-safe control. The engine ECM performs
these controls according to the signals sent from various sensors and switches.
In addition, the engine ECM has a self-diagnosis function to perform troubleshooting using the
YDIS.
The 6Y8 Multifunction Meter can be installed as an option.

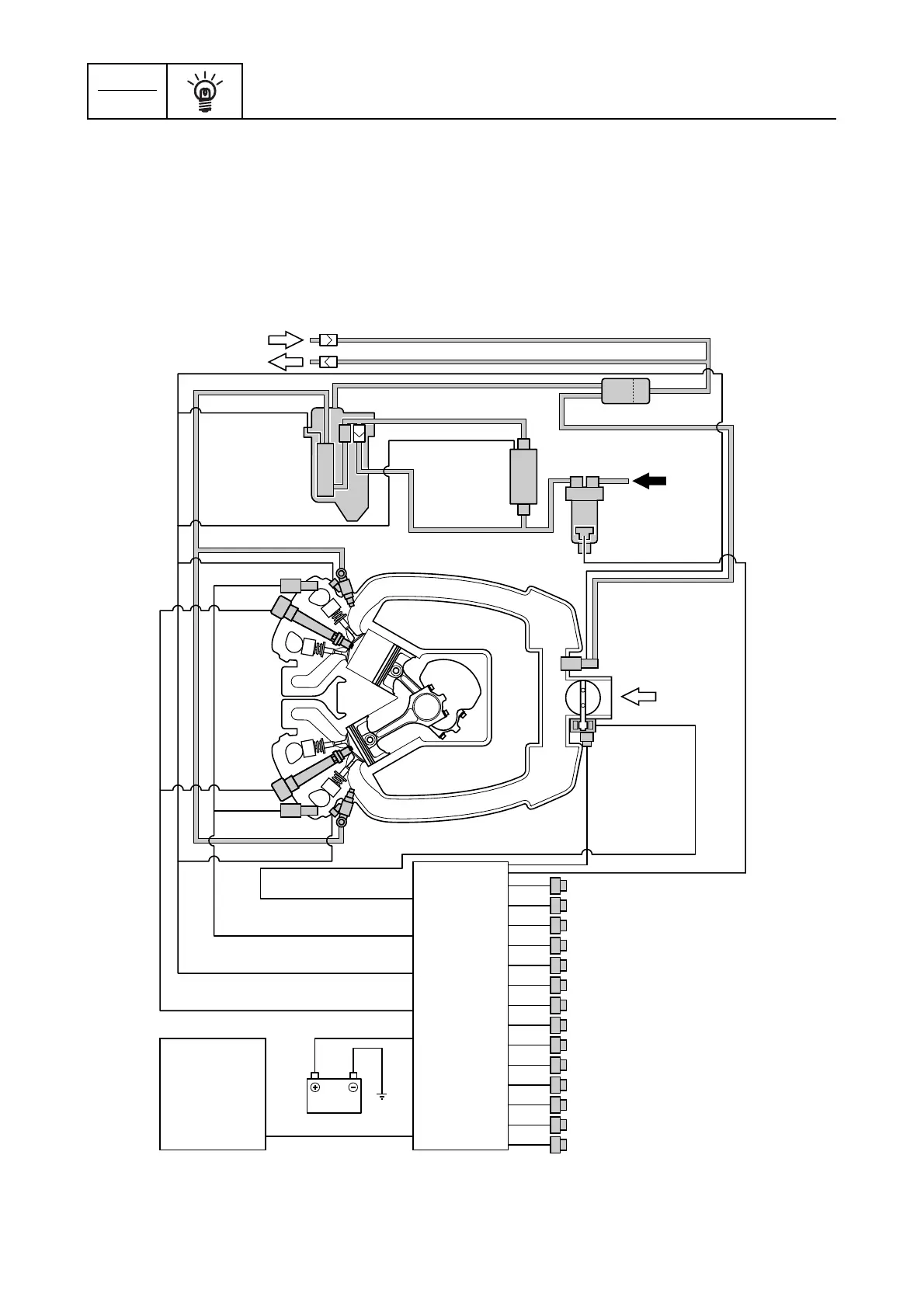

Air (cowl outside)
Check valve
Filter
High-pressure
fuel pump
Vapor separator
Check valve
Low-pressure fuel pump
Canister
Water separator
Fuel
Water
detection
switch
OCV
Fuel injector
Vapor shut-off
valve
TPS
ETV
Air
OCV
Ignition
coil
Throttle control
Valve control
Fuel control
Ignition control
Battery
Engine
ECM
Cam position sensor
Pulser coil
Air pressure sensor
Oil pressure sensor
Engine temperature sensor
Air temperature sensor
Knock sensor
APS
Shift cut switch
Neutral switch
Thermoswitch
Engine shut-off switch
Water pressure sensor (optional)
Speed sensor (optional)
Ignition
coil
Fuel injector
6Y8 Multi-
function
Meter
Air (cowl inside)
Check valve
