Yamaha F200B - Rigging Grommet Mounting; Rigging Grommet Description; Installing the Shift Cable and Throttle Cable

3-9
RIG
GING
Rigging information

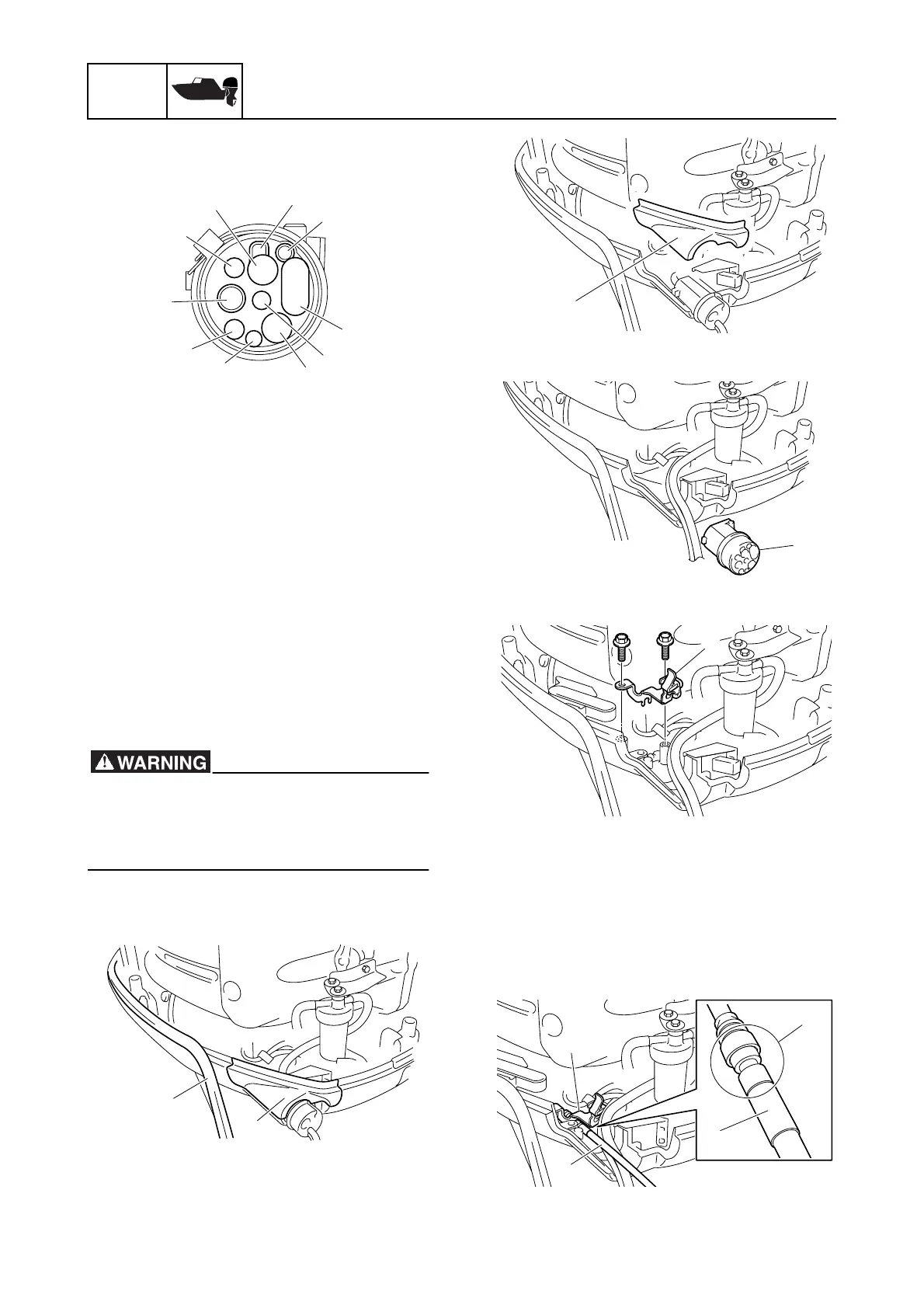

Rigging grommet mounting
Rigging grommet description
a Throttle cable
b Extension wiring harness
c Water temperature sensor harness
(optional) or water pressure sensor hose
(optional)
d Isolator lead (optional)
e Battery cable
f Conventional gauge lead (optional) or 6Y8
Multifunction Meter harness (optional)
g Fuel hose
h Speedometer hose
k Shift cable
m Flushing hose (commercially available)
Installing the shift cable and throttle
cable
Before installing the shift cable and throt-
tle cable, make sure to adjust the cables
according to the procedures in the remote
control operation manual.
1. Remove the rubber seal 1 from the
retaining plate 2.
2. Remove the retaining plate 2.
3. Remove the rigging grommet 3.
4. Remove the cable holder 4.
5. Route the shift cable 5 through the bot-
tom cowling.
6. Fit the cable holder 4 into the groove a
in the shift cable 5, and then install the
cable holder 4 along with the shift cable
5.
m
a
b
c
d
e
f
g
h
k
1
2
2
3
4
a
5
4
5
