Yamaha F200B - Installing the Wiring Harness

7-23
POWR
Power unit

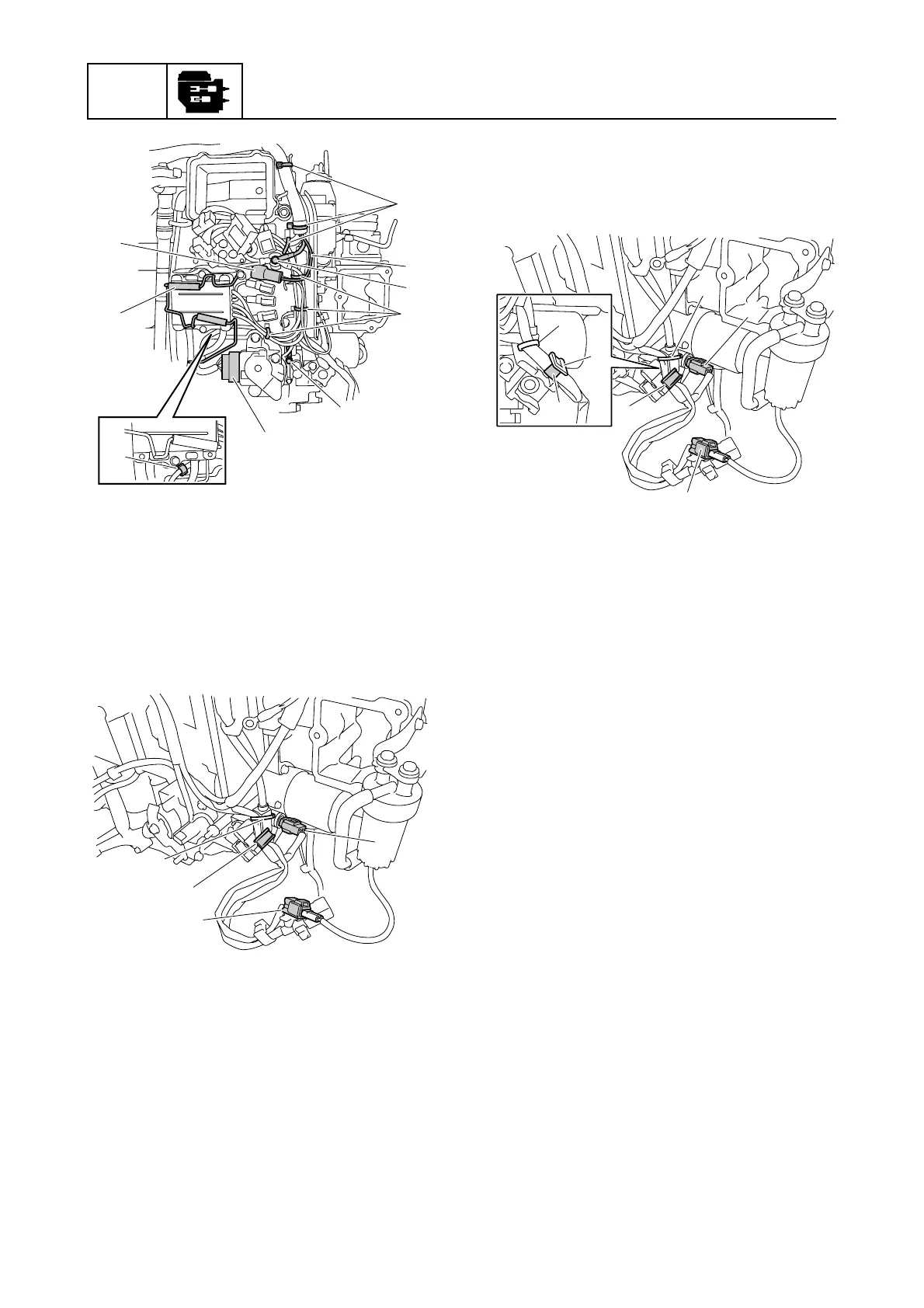

39. Disconnect the oil pressure sensor cou-
pler R and water detection switch cou-
pler T.
40. Remove the plastic tie O, and then
remove the wiring harness from the
holder P.
41. Remove the wiring harness.
Installing the wiring harness
To install all of the wiring harness, see “Wir-
ing harness routing” (5-6).
1. Connect the oil pressure sensor coupler
a and water detection switch coupler b.
2. Install the wiring harness at the white
tape c to the holder 1, and then fasten
the wiring harness using the plastic tie
2.
3. Connect the APS coupler d.
4. Install the holder e on the wiring har-
ness to the junction box, and then install
the Rectifier Regulator protector 3.
5. Install the cap 4 to the starter motor lead
and brown lead of the wiring harness 5,
and then connect them together.
6. Connect the ground lead terminals f
and g.
7. Fasten the Rectifier Regulator lead and
wiring harness using the plastic ties 6.
M
L
M
N
L
M
N
p
4
R
T
O
P
b
2
2
1
a
1
c
