Yamaha F200B - Installing the Cylinder Head

7-68
7
5. Install the anode assemblies 9.

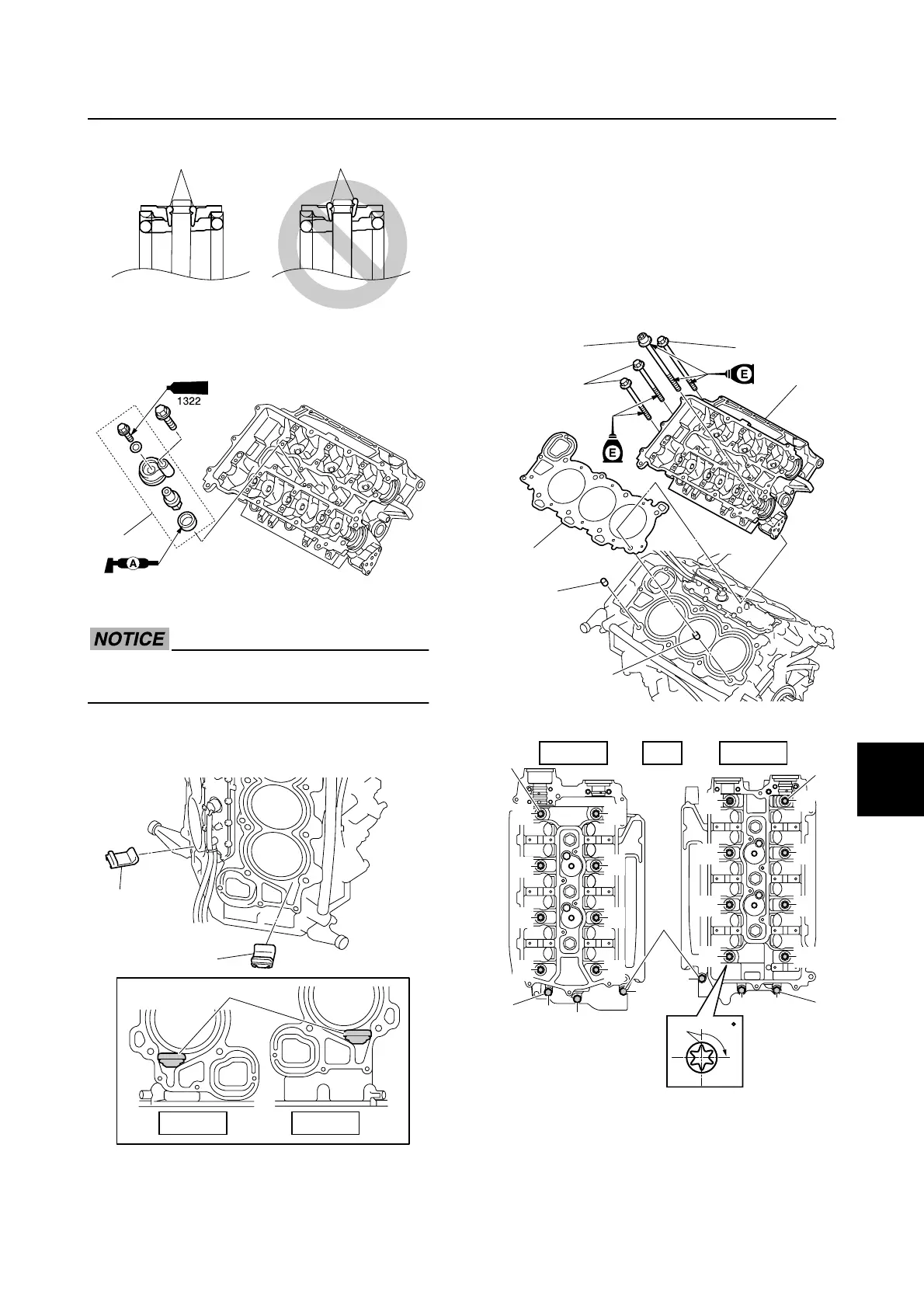

Installing the cylinder head
Do not reuse a filter or gasket, always
replace it with a new one.
1. Install the water shut grommets 1 into
the cylinder block.
2. Install the dowels 2, new gaskets 3,
and the cylinder heads 4, and then
tighten the cylinder head bolts 5 to the
specified torques in 6 stages and in the
order 1, 2, and so on.
3. Tighten the cylinder head bolts 6 and 7
to the specified torques in 2 stages and
in the order 9, 0, and so on.
