Yamaha F200B - Installing the Water Pressure Sensor (Optional)

3-13
RIG
GING
Rigging information
TIP:
Cut the tube 5 to 600 mm (23.6 in).

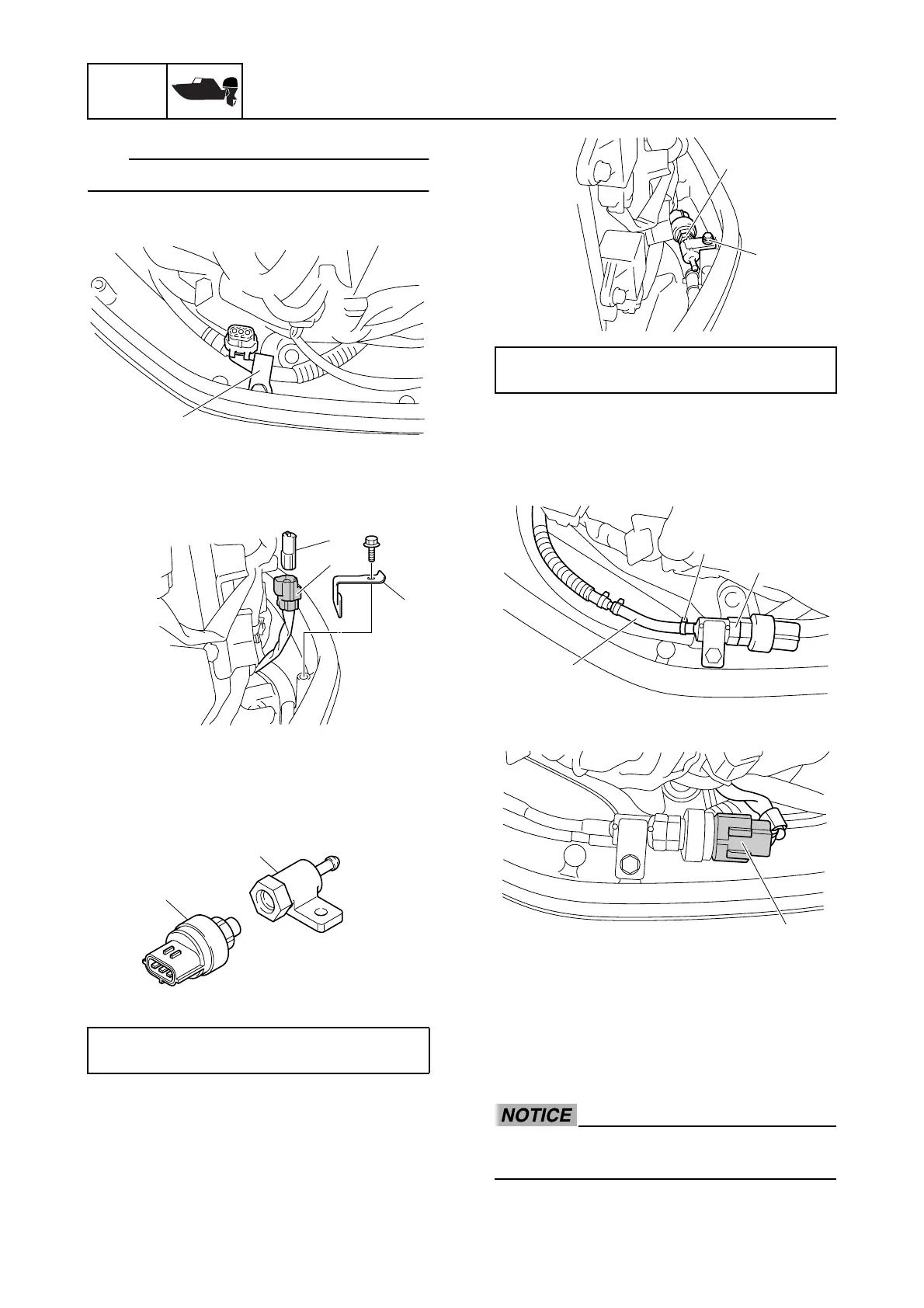

5. Remove the bracket 6.
6. Remove the cap 7, and then remove the
bracket 8 from the speed sensor coupler
b.
7. Install the speed sensor 9 to the speed
sensor adapter 0, and then tighten the
speed sensor 9 to the specified torque.
8. Install the speed sensor assembly c,
and then tighten the speed sensor
adapter bolt A to the specified torque.
9. Connect the extension hose 3 to the
speed sensor adapter 0, and then fas-
ten the extension hose using the plastic
tie B.
10. Connect the speed sensor coupler b.
11. Install the engine ECM cover.
Installing the water pressure sensor
(optional)
See 6Y8 Multifunction Meter set up manual
for details of the components.
Do not reuse a gasket, always replace it
with a new one.
Speed sensor 9:
18 N·m (1.8 kgf·m, 13.3 ft·lb)
6
7
8
b
9
0
Speed sensor adapter bolt A:
10 N·m (1.0 kgf·m, 7.4 ft·lb)
c
A
3
0
B
b
